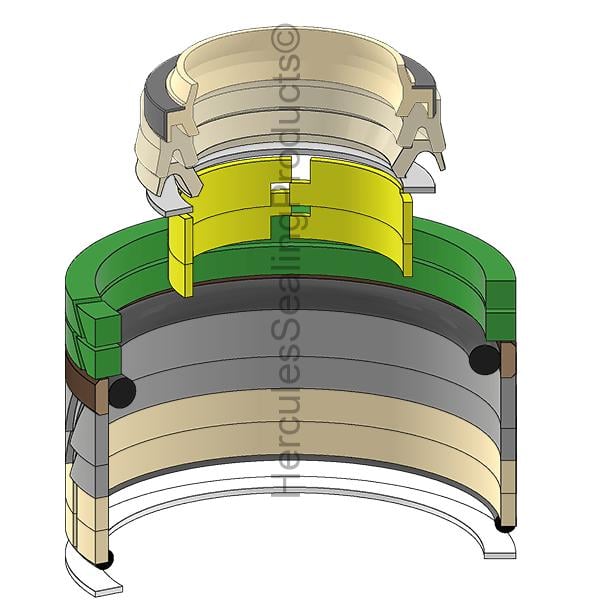

JIC-LZ00478 Hydraulic Cylinder Seal Kit for Case - 120 mm Rod x 170 mm Bore

Part JIC-LZ00478 supplies the hydraulic cylinder seal kit configuration listed for Case hydraulic cylinders. Hercules lists the rod diameter as 120 mm and the cylinder bore as 170 mm.

Choosing the Correct Part

For an equipment repair, confirm which cylinder is being rebuilt and check its identification. Match the kit reference and listed dimensions before selecting the replacement.

Cylinder Kit Specifications

• Part number: JIC-LZ00478
• Product type: Hydraulic Cylinder Seal Kit
• Application: Case hydraulic cylinders
• Rod diameter: 120 mm
• Cylinder bore: 170 mm
• Hercules identification code: P-UB-10

Hercules identifies code P-UB-10 as: press-in wiper; U-seal and buffer; piston seal.
