AG Clevis Hydraulic Cylinders

AG Clevis Hydraulic Cylinders - GetHydraulics

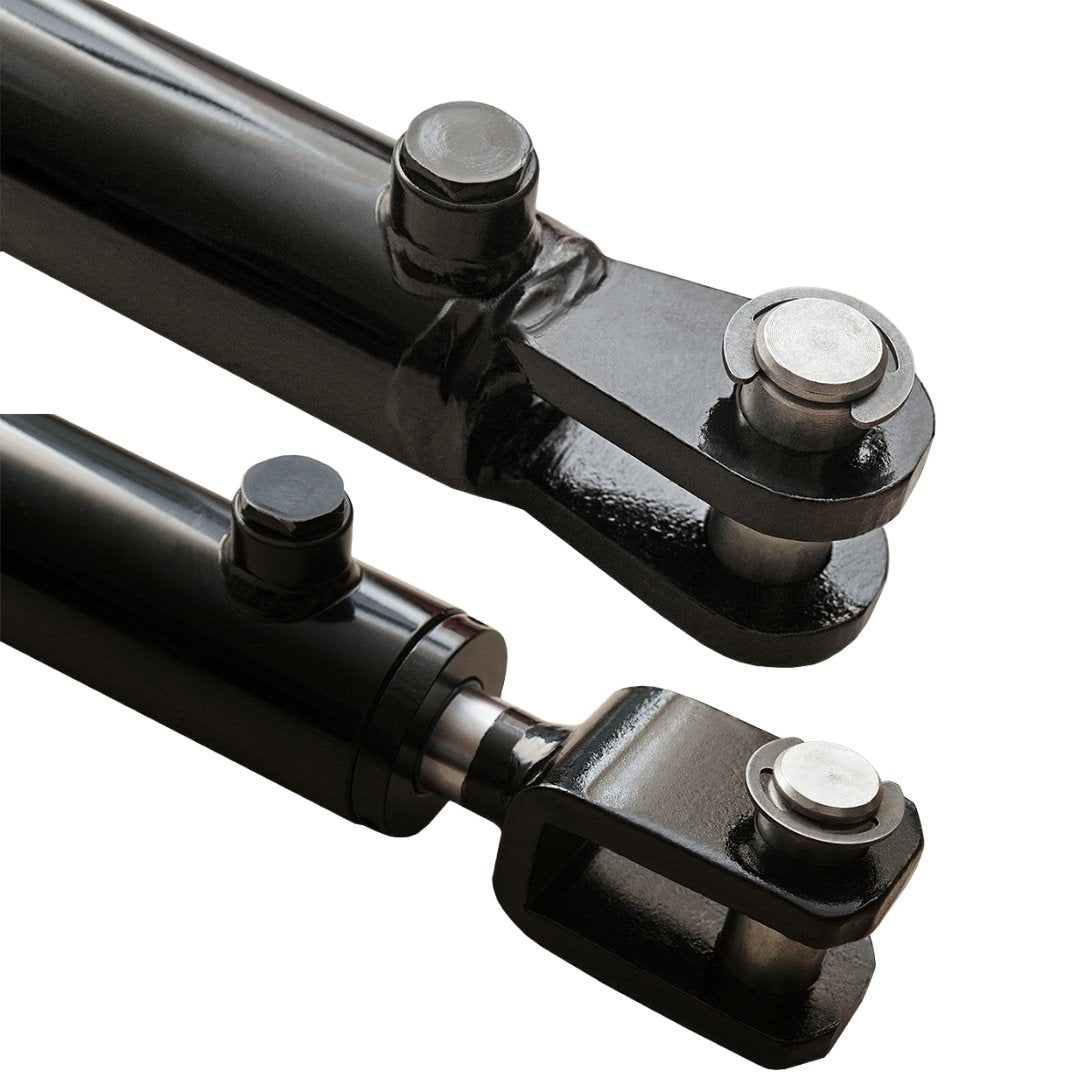

Shop AG clevis hydraulic cylinders for agricultural equipment, implements, trailers and mobile hydraulic applications. These welded, double-acting cylinders use clevis mounts at both ends for pin-mounted installations where the cylinder must pivot with the equipment linkage.

Available bore sizes include 2", 2.5", 3", 3.5" and 4", with standard stroke options from 8" through 24" and 8" ASAE configurations.

AG Clevis Cylinder Sizes

Current bore sizes include:

  • 2" bore — 1.125" rod
  • 2.5" bore — 1.125" rod
  • 3" bore — 1.25" rod
  • 3.5" bore — 1.25" rod
  • 4" bore — 1.5" rod

Available configurations use SAE 8 hydraulic ports, 1" mounting pins and are rated for operating pressures up to 2,500 PSI.

Standard and ASAE Stroke Options

Stroke selections include standard 8", 10", 12", 14", 16", 18", 20" and 24" configurations. An 8" ASAE stroke option is also available in each bore family.

ASAE cylinders use different retracted and extended dimensions than the standard 8" configuration, so select the correct version based on the mounting geometry required by the equipment.

Choosing the Right AG Clevis Hydraulic Cylinder

Start by matching the bore and stroke required by the application. Then confirm the rod diameter, pin diameter, clevis width, port size, retracted length and extended length before ordering.

Bore size affects the amount of hydraulic force the cylinder can produce, while stroke determines total rod travel. Two cylinders with the same bore and stroke are not necessarily interchangeable if their mounting dimensions differ.

Need help selecting an AG clevis cylinder? Contact Union Hydraulics with the bore, stroke, pin dimensions, port size and mounting measurements from your existing cylinder and we'll help compare the available options.

5 products
