When two or more cylinders need to remain synchronized throughout the full stroke, rephased hydraulic cylinders are often the right solution. They are built for applications where keeping movement even matters, especially on farm implements and other equipment that relies on multiple cylinders working together instead of drifting out of alignment.

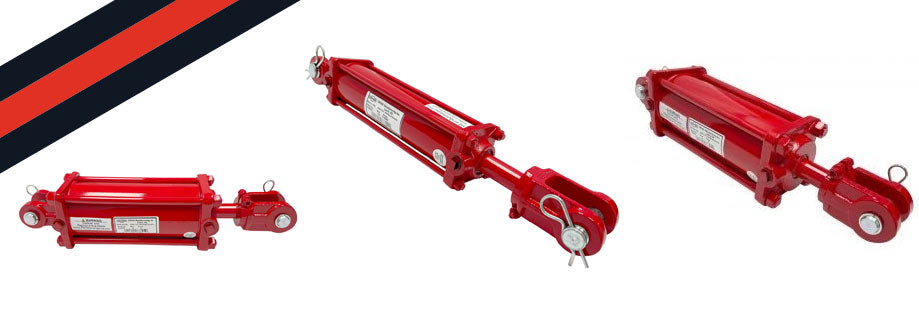

Union Hydraulics offers rephasing hydraulic cylinders in multiple bore options, with 8-inch stroke variants shown on the page, plus features like double-ported bases, 1/2-inch NPT ports in line with the pins, hardened steel pins, and heavy-duty construction intended for demanding service.
Quick Answer: What Is a Rephasing Hydraulic Cylinder?
A rephasing hydraulic cylinder is a hydraulic cylinder designed to automatically bring multiple cylinders back into synchronization when they are connected in a series circuit.
It is commonly used on equipment where matched cylinder movement matters, such as agricultural implements, because it helps prevent one cylinder from getting ahead of the others over time.
Union Hydraulics lists these cylinders as suitable for farming equipment and notes that they may be used as master or slave units with DC cylinders.
Why Rephasing Hydraulic Cylinders Matters
A standard cylinder can work well in many systems, but it is not always the best fit when the job depends on more than one cylinder extending and retracting evenly.
In those systems, slight differences in oil volume, load, or movement can slowly create a mismatch. That mismatch can lead to uneven implement operation, inconsistent lift height, binding, or additional wear on the machine.
That is where rephasing hydraulic cylinders stand out. Their internal design is made for automatic rephasing in a series circuit, which helps restore synchronization during operation.
For buyers trying to keep equipment moving reliably in the field, that is not a minor detail. It can be the difference between smooth performance and a machine that never quite works the way it should.
Union Hydraulics’ product page specifically describes the CROSS series DR tie-rod rephasing cylinder as incorporating an internal mechanism for automatic rephasing in a series circuit.
What Rephasing Hydraulic Cylinders Do
At a practical level, rephasing hydraulic cylinders converts hydraulic energy into linear mechanical force just like other hydraulic cylinders. The difference is in how they behave in multi-cylinder circuits. They are engineered so cylinders in the system can return to the same working relationship rather than gradually drifting apart.
For a buyer, that means they are often chosen when the application requires:
- synchronized motion across multiple cylinders
- dependable extension and retraction across the system
- better control of implements that need even lifting or leveling
- a replacement cylinder built for agricultural or similar heavy-duty service
Union Hydraulics’ current product listing also notes that these cylinders are double ported for easy connection and built as heavy-duty equipment with a 1-year warranty.
Where Rephasing Hydraulic Cylinders Are Commonly Used
Rephasing hydraulic cylinders are most commonly associated with agricultural equipment, and that is the main use case reflected on the Union Hydraulics page. They are a logical fit anywhere multiple cylinders must work together in a repeatable pattern.
Common applications can include:
- agricultural implements
- lift and leveling systems
- equipment using series of hydraulic circuits
- systems where cylinders act together as matched units
- machines where one cylinder may serve as a master and another as a slave
Because application details matter, buyers should always confirm the cylinder is appropriate for the exact circuit design, mount style, pressure requirement, and port configuration before ordering.
Why Buyers Choose Rephasing Hydraulic Cylinders
Industrial and equipment buyers usually are not shopping for this style of cylinder by accident. They are looking for a solution to a real operating problem. In most cases, the reasons come down to performance, service life, and fit.
1. Better synchronization in multi-cylinder systems
The main reason to choose a rephasing hydraulic cylinder is to maintain more even movement in a series circuit. That is the core functional advantage of this design.
2. Strong construction for working equipment
Union Hydraulics’ listed cylinder details include precision-finished ST52.3 steel barrels, polished induction-hardened C1045 steel alloy rods, high-tensile tie rods with rolled threads, heavy-duty seals, hardened steel pins, and an aluminum alloy piston. Those are the kinds of construction details buyers look for when uptime matters.
3. Easy connection considerations
The product description calls out a double-ported base and 1/2-inch NPT ports in line with the pins. That helps buyers evaluate hose routing, plumbing layout, and installation fit before the cylinder arrives.
4. Made for agricultural replacement needs
Union Hydraulics describes these as an excellent replacement for farming equipment and notes Made in the USA construction for the CROSS series shown. For many buyers, that combination of application fit and build quality matters as much as the dimensions.
Construction Features That Matter Before You Order
When you are choosing rephasing hydraulic cylinders, the headline dimensions are only part of the story. Buyers should also look closely at the mechanical and hydraulic details that affect real-world performance.
Bore and stroke
Union Hydraulics currently shows multiple bore and stroke variants on the page, including 3-inch, 3.25-inch, 3.5-inch, 3.75-inch, and 4-inch bore options, all paired with an 8-inch stroke.
Pressure capability
The listed product description identifies the CROSS series DR tie-rod rephasing hydraulic cylinder as a 2500 PSI cylinder. Pressure rating should always be checked against your system’s actual operating requirements, not just the part you are replacing.
Port configuration
Port style affects hose selection, adapter requirements, and installation. The page specifies 1/2-inch NPT ports in line with the pins, which is an important detail for buyers matching existing plumbing.
Base and mounting details

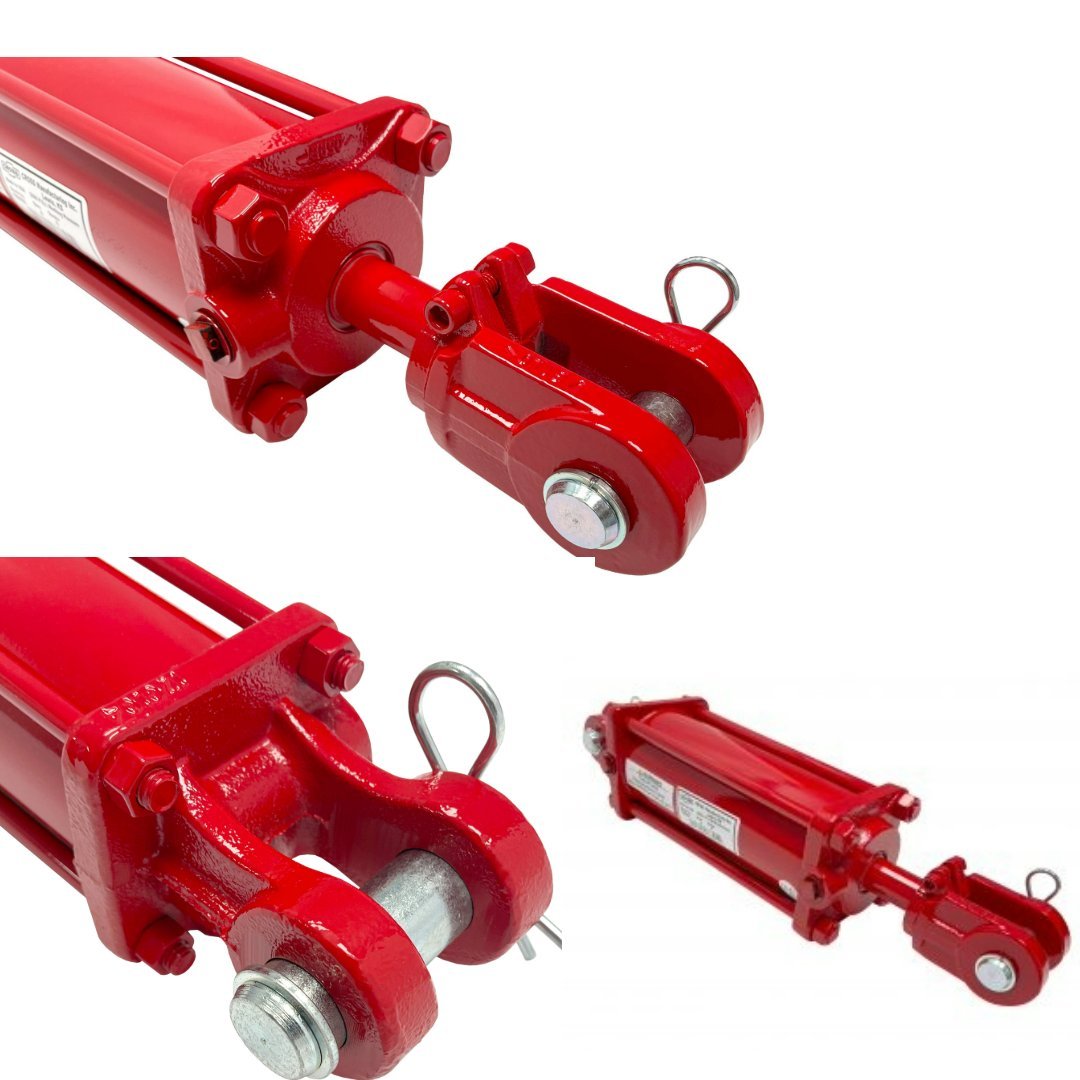

The listing references a ductile iron screw-on clevis and hardened steel pins. Mounting style and pin dimensions need to match the equipment, or the cylinder may not install correctly, even if the bore and stroke look right.
Materials and sealing
Cylinder barrel material, rod finish, seal quality, and piston design all influence wear resistance and longevity. The product page highlights steel barrels, hardened steel rods, aluminum alloy pistons, and upgraded heavy-duty seals for longer service life.
What Buyers Should Consider Before Ordering
Before ordering rephasing hydraulic cylinders, take a few minutes to confirm the specifications that actually determine fit and function.
Verify the hydraulic circuit
This is one of the biggest mistakes buyers make. A rephasing hydraulic cylinder is intended for a particular type of series-circuit application. If the system design does not call for rephasing behavior, using this style of cylinder may create problems rather than solve them.
Confirm bore, stroke, and retracted dimensions
Matching only the stroke is not enough. You also need the correct bore, rod size, closed length, open length, and pin-to-pin geometry for the application.
Check port type and hose compatibility
Union Hydraulics lists 1/2-inch NPT ports on the product shown. If your system uses different thread styles or hose ends, you may also need compatible hydraulic hoses, adapters, or fittings to complete the installation.
Review pressure requirements
The cylinder must be rated appropriately for the system pressure. The listed rephasing cylinder is described as a 2500 PSI unit, so that should be confirmed against the application before purchase.
Think about service conditions
Temperature, contamination, load shock, duty cycle, and storage conditions all affect cylinder life. In real working environments, seals, rod finish, and material strength matter just as much as dimensions.
Common Ordering Mistakes to Avoid
Ordering hydraulic cylinders gets expensive when one small detail is overlooked. A few of the most common mistakes include:
- assuming any double-acting cylinder can replace a rephasing cylinder
- matching stroke but not checking bore or port size
- ignoring the hydraulic circuit design
- failing to verify mount style and pin dimensions
- overlooking hose and fitting compatibility
- not checking pressure requirements against the machine
- replacing only one cylinder in a system without considering how the others are performing
At Union Hydraulics, this is exactly where practical product support matters. If you are unsure about fit, it is better to confirm before ordering than lose time on a return or a machine that still does not perform correctly.
Real-World Application Examples
Farm implement lift systems
A rephasing hydraulic cylinder is commonly used on equipment where both sides of the implement need to raise and lower together. Keeping cylinders synchronized helps maintain even movement and more consistent field performance.
Multi-cylinder leveling applications
On systems where two or more cylinders need to work as a group, rephasing design helps bring the circuit back into alignment during operation.
Replacement of worn or damaged original cylinders
When an existing rephasing cylinder is leaking, drifting, or no longer moving evenly with the rest of the system, replacing it with the proper rephasing model can help restore expected operation.
Rephasing Hydraulic Cylinders vs. Standard Hydraulic Cylinders
Not every hydraulic cylinder is built for the same job. Buyers comparing options should focus on function, not just physical size.
| Feature | Rephasing Hydraulic Cylinders | Standard Hydraulic Cylinders |
|---|---|---|
| Intended use | Multi-cylinder series circuits needing synchronization | General hydraulic linear motion |
| Key advantage | Automatic rephasing behavior helps restore matched movement | Broad application flexibility |
| Common use case | Agricultural and synchronized lift applications | Single-cylinder or general-purpose applications |
| Selection priority | Circuit design, synchronization needs, bore, stroke, ports | Bore, stroke, mount style, ports, pressure |
| Buyer caution | Must match the actual system design | May not solve synchronization issues |
For buyers exploring alternatives on Union Hydraulics, other cylinder styles such as AG Clevis Hydraulic Cylinders, Cross Tube Hydraulic Cylinders, and Pin Eye Hydraulic Cylinders may be appropriate when the application does not require rephasing behavior. Union Hydraulics also stocks those categories, along with Hydraulic Pumps, Hydraulic Hoses, JIC Fittings, SAE Fittings, and Monoblock Hydraulic Valves that often support the complete hydraulic system around the cylinder.
Related Products That May Matter for the Job
A cylinder replacement often turns into more than a single-part purchase. If you are already working on the system, it may make sense to review the related hydraulic components that affect installation and performance:
- Hydraulic Hoses if the current hoses show age, abrasion, or leakage
- JIC Fittings or SAE Fittings if thread style adaptation is required
- Monoblock Hydraulic Valves, when flow control or spool configuration is part of the issue
- Hydraulic Pumps, if the broader system is weak, inconsistent, or underperforming
- Hydraulic Repair services if the application needs troubleshooting instead of a simple replacement part
Union Hydraulics carries these surrounding product lines on the site, which makes it easier to source more of the hydraulic system in one place, rather than treating the cylinder as a stand-alone part.
Why Buy Rephasing Hydraulic Cylinders from Union Hydraulics?
Buyers want more than a part number. They want confidence that the product matches the application and arrives from a company that understands hydraulic systems.
Union Hydraulics makes that easier by combining stocked product categories, hydraulic repair support, and direct contact information for technical or sales help. The site also emphasizes same-day shipping messaging, bulk pricing callouts on the product page, and real customer feedback highlighting help with fit verification. That kind of support matters when downtime is on the line.
Frequently Asked Questions
What is a rephasing hydraulic cylinder?
A rephasing hydraulic cylinder is a cylinder designed to automatically bring cylinders back into synchronization in a series hydraulic circuit. It is commonly used where multiple cylinders need to move evenly.
Where are rephasing hydraulic cylinders commonly used?
They are commonly used on farming equipment and other systems where matched cylinder movement is important. Union Hydraulics specifically notes agricultural and farming equipment use.
How is a rephasing hydraulic cylinder different from a standard cylinder?
The main difference is function. A rephasing hydraulic cylinder is built to help maintain synchronization in multi-cylinder series circuits, while a standard cylinder is generally chosen for broader linear motion tasks.
What specifications matter most when ordering?
Start with bore, stroke, pressure rating, mount style, pin size, port type, and circuit design. On the Union Hydraulics listing, the visible variants include 3-inch to 4-inch bores with 8-inch stroke, 1/2-inch NPT ports, and a 2500 PSI rating for the listed model.
What port type is shown on the Union Hydraulics rephasing cylinder?
The product description lists 1/2-inch NPT ports in line with the pins. That is an important detail for matching hoses and fittings.
Can I use a standard hydraulic cylinder instead of a rephasing hydraulic cylinder?
Not always. If the equipment depends on cylinders staying synchronized in a series circuit, replacing a rephasing cylinder with a standard cylinder can create performance and alignment issues.
What materials are used in the listed rephasing hydraulic cylinder?
The Union Hydraulics product page describes precision-finished ST52.3 steel barrels, polished induction-hardened C1045 steel alloy rods, high-strength aluminum alloy pistons, hardened steel pins, and heavy-duty seals.
What should I do if I am not sure which cylinder I need?
Call Union Hydraulics before ordering. If you have dimensions, pressure information, mount details, or even photos of the old cylinder, that can help identify the right replacement faster.
Need Help Choosing the Right Rephasing Hydraulic Cylinder?
If you are trying to match an existing rephasing hydraulic cylinder, sort out a hydraulic circuit issue, or confirm whether rephasing is the right design for your equipment, reach out to Union Hydraulics before you order.
A quick conversation can save you time, prevent fitment mistakes, and help you get the correct part for the way your machine actually works. If you are unsure which cylinder your application needs, call Union Hydraulics and let the team help identify the right replacement.
