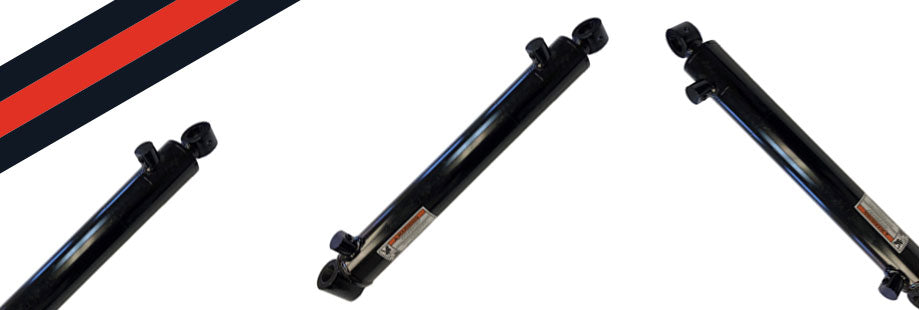

Shop Pioneer hydraulic cylinders for Strong Arm and Rack N Pinion tarp systems. Union Hydraulics carries aftermarket replacement cylinders identified by Pioneer part number, system application and cylinder function.
Current replacements include HR4520, HR4719 and HR4752 hydraulic cylinders.
Pioneer Hydraulic Cylinder Part Numbers
- HR4520 — 36" gantry hydraulic cylinder
- HR4719 — 16" rack gear / rack-pivot hydraulic cylinder
- HR4752 — 36" Strong Arm / arm-extension hydraulic cylinder
Pioneer Strong Arm Hydraulic Cylinders
Pioneer Strong Arm tarp systems use different hydraulic cylinders for specific system functions. HR4752 is used as an arm-extension cylinder on RP4500SAR and RP4500SARG systems, while HR4719 is used for the rack or pivot mechanism.
Because the cylinders perform different functions, stroke length alone should not be used to determine interchangeability.
Pioneer Gantry Hydraulic Cylinder
HR4520 is a 36" stroke gantry cylinder used in Pioneer Strong Arm Rack N Pinion tarp-system applications. Confirm the existing cylinder part number and tarp-system model before selecting a replacement.
How to Identify the Correct Pioneer Cylinder
Start with the Pioneer part number from the existing cylinder or tarp-system parts information. Then compare the stroke, closed length, mounting configuration, pin dimensions and hydraulic connections.
Need help finding the correct Pioneer hydraulic cylinder? Contact Union Hydraulics with the tarp-system model, existing cylinder part number and cylinder measurements and we'll help compare the available replacement.
