Aftermarket CAT Hydraulic Cylinders

Shop aftermarket CAT hydraulic cylinders for Caterpillar equipment and attachment applications. Find replacement bucket, bucket tilt, grapple and stabilizer cylinders by part number and cylinder function.

CAT Replacement Cylinder Part Numbers

  • Bucket cylinder: 293-6264.
  • Right-hand bucket tilt cylinders: 293-5711 and 378-7963.
  • Left-hand bucket tilt cylinders: 293-5712 and 378-7964.

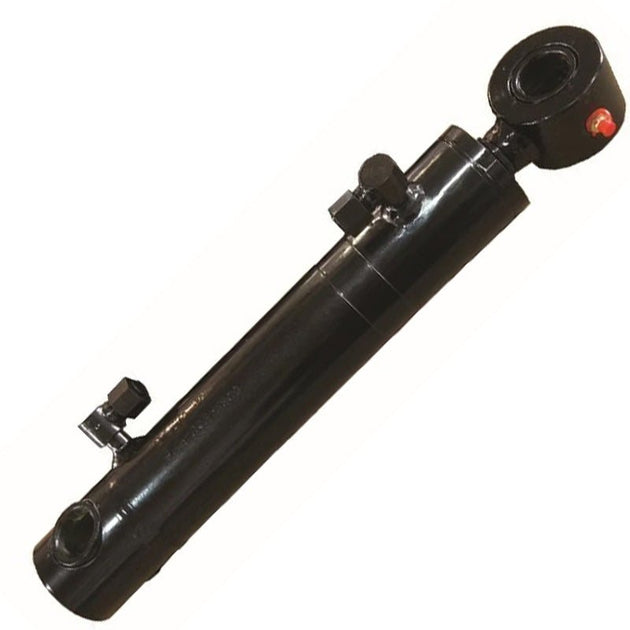

  • Grapple cylinders: 211-7407 and 562-2800.
  • Left-hand stabilizer cylinder: 604-9007.

Review each product page for available specifications and equipment fitment. Different part numbers represent different replacement applications and should not be assumed interchangeable.

Confirm Your Replacement Cylinder

Use the original cylinder part number whenever possible. Confirm your equipment or attachment model, serial number and cylinder function, then compare bore diameter, stroke, rod diameter, mounting dimensions and hydraulic connections.

For bucket tilt and stabilizer applications, confirm the required left-hand or right-hand cylinder before ordering. Similar-looking cylinders may have different mounting points, port locations or dimensions.

Need Help Matching a CAT Cylinder?

Call Union Hydraulics at 704-292-7268 or contact us with your part number, equipment details and cylinder measurements. Browse our complete hydraulic cylinder collection for additional replacement options.

These are aftermarket replacement products. CAT and Caterpillar names and part numbers are referenced to identify replacement applications.

8 products
