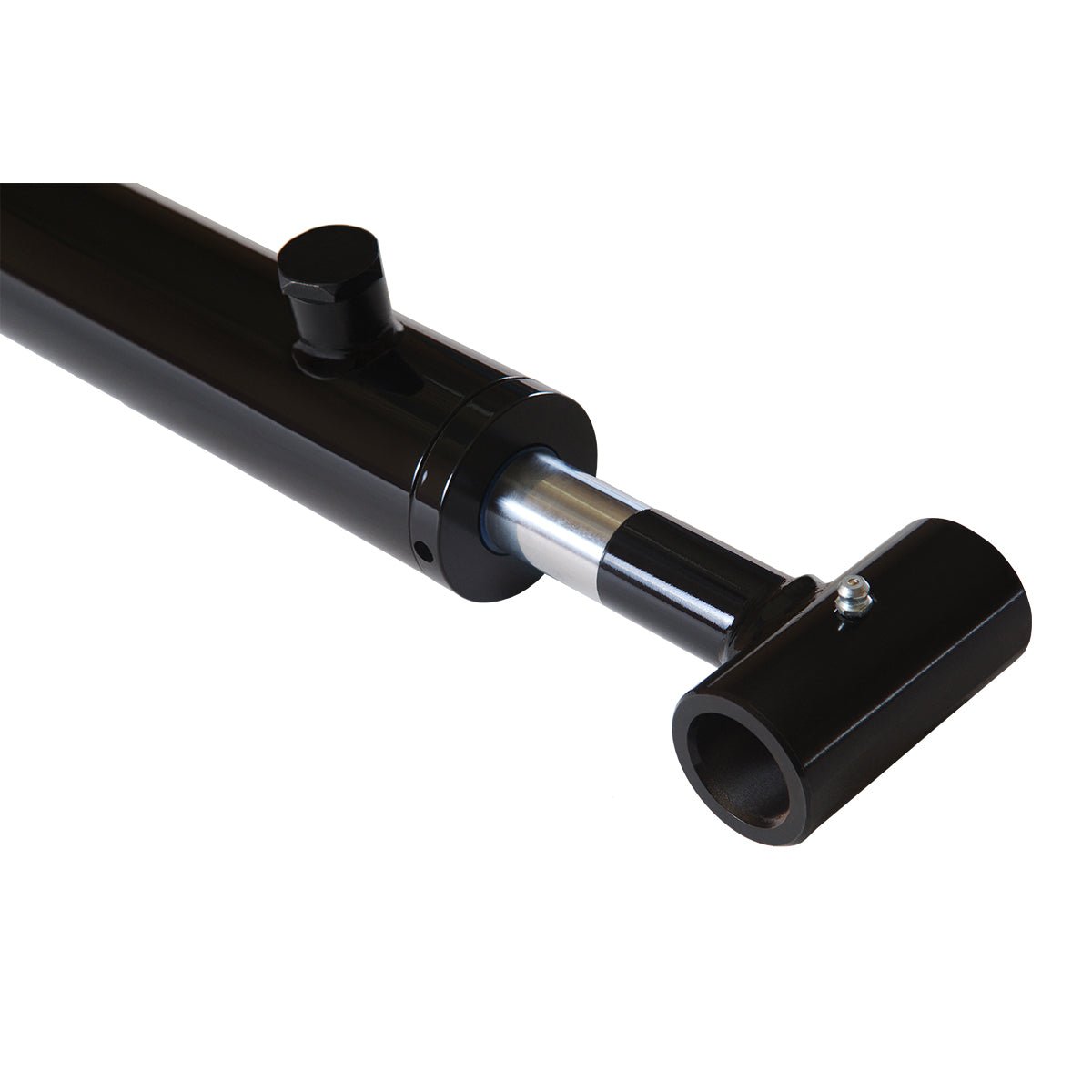

Shop loader hydraulic cylinders for front-end loaders, skid-steer loaders, compact track loaders, backhoes, telehandlers and other mobile hydraulic equipment. These Magister welded, double-acting cylinders are available in 1.75", 2" and 2.5" bore sizes with multiple stroke lengths from 14" to 23.5".
Choose a Loader Cylinder by Bore and Stroke
Available configurations use cross-tube mounting ends and are rated for operating pressures up to 3,500 PSI. Bore, stroke, rod diameter, pin diameter and hydraulic port size vary by configuration, so the correct cylinder should be selected from the dimensions required by the application.
Match the Cylinder by Dimensions
These are dimension-based replacement cylinders rather than model-specific OEM replacements. Before ordering, compare the existing cylinder's bore, stroke, retracted length, extended length, rod diameter, pin diameter, mounting width and port size.
Matching the mounting geometry is especially important on loader applications because differences in closed length or pin location can change lift-arm or bucket travel even when the bore and stroke appear correct.
Need help selecting the right loader hydraulic cylinder? Contact Union Hydraulics with the measurements from your existing cylinder, equipment model and any part number available and we'll help compare the options.
