JIC-122535A1 Hydraulic Cylinder Seal Kit for Case - 2 in Rod x 4 in Bore

For repairs involving Case hydraulic cylinders, Hercules JIC-122535A1 identifies the specified hydraulic cylinder seal kit. Hercules lists the rod diameter as 2 in and the cylinder bore as 4 in.

Cylinder Kit Specifications

• Application: Case hydraulic cylinders
• Rod diameter: 2 in
• Cylinder bore: 4 in
• Hercules identification code: P-UB-10
• Part number: JIC-122535A1
• Product type: Hydraulic Cylinder Seal Kit

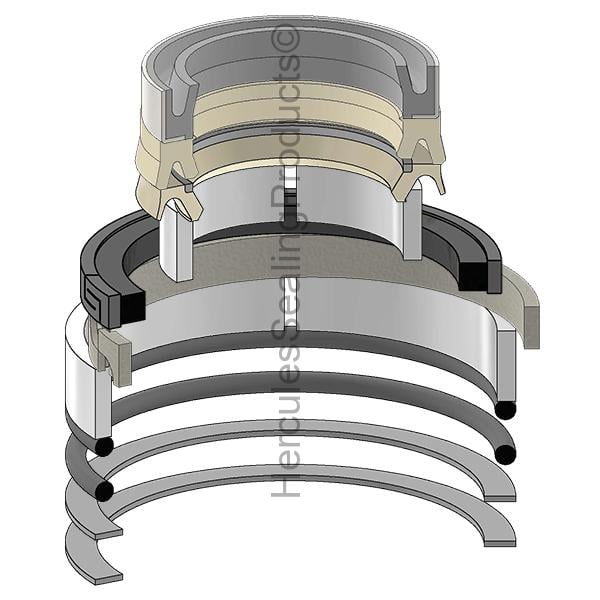

Hercules identifies code P-UB-10 as: press-in wiper; U-seal and buffer; piston seal.

Check the Repair Configuration

For an equipment repair, confirm which cylinder is being rebuilt and check its identification. Match the kit reference and listed dimensions before selecting the replacement.
