6809501 Bobcat Compact Tractor Angle Control Cylinder

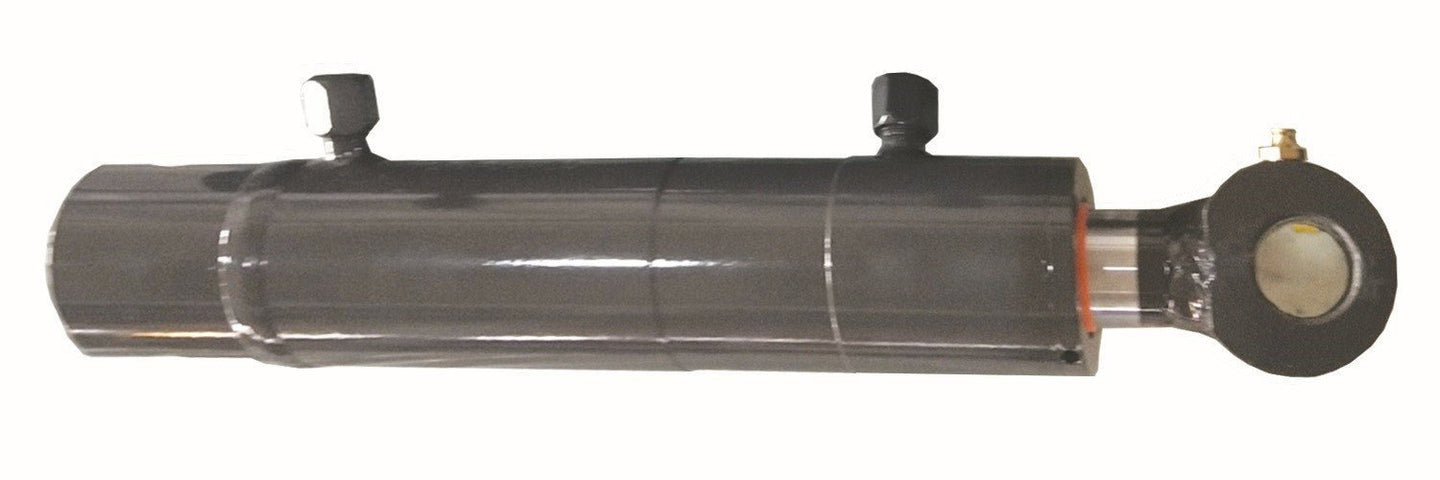

Bobcat 6809501 Angle Control Cylinder

This aftermarket replacement for Bobcat 6809501 is the hydraulic angle-control cylinder used with several compact-tractor attachments, including angle brooms, snow blades, soil conditioners, utility blades and combination buckets.

The 2-inch bore, 5-inch stroke and 1.25-inch rod are paired with 1-inch pin eyes at both ends. That geometry is important when matching the cylinder to the attachment linkage.

Compatible Bobcat Tractors

• Replaces Bobcat Part Number: 6809501
• Sub-Compact Models: CT1021, CT1025
• Compact Tractor Models: CT2025, CT2035, CT2040, CT2535, CT2540, CT4045, CT4050, CT4058, CT4545, CT4558, CT5545, CT5550, CT5555, CT5558
• Bore: 2"
• Stroke: 5"
• Rod Diameter: 1.25"
• Pin Eyes: 1" at barrel and rod ends

Attachment plumbing and cylinder revisions can vary. Check the 6809501 part number and attachment application before purchase; Union Hydraulics can help if you only have the tractor model and attachment type.
