M-SP-1512-0625 Meyer Snow Plow Cylinder - Aftermarket

M-SP-1512-0625 Aftermarket Meyer Snow Plow Cylinder

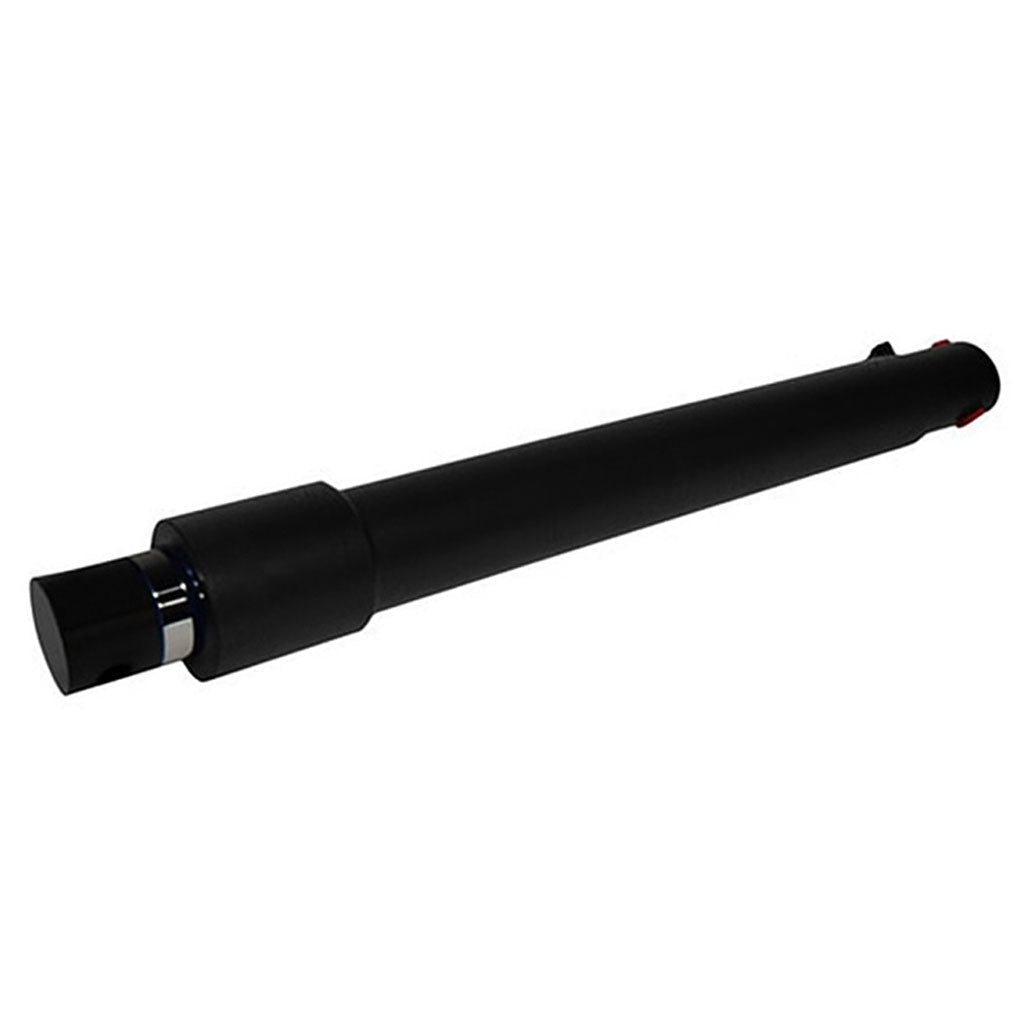

This M-SP-1512-0625 hydraulic cylinder is an aftermarket replacement for select Meyer snow plow applications. It is a single-acting snow plow cylinder intended for plow lifting or angling systems that use this part configuration.

M-SP-1512-0625 Cylinder Information

• Replacement application: Meyer snow plow
• Part reference: M-SP-1512-0625
• Supplier-listed bore: 1.5"
• Stroke: 12"
• Pin configuration: 0.625"
• Action: Single acting
• Typical port for this replacement family: 1/4" NPT

Confirm Snow Plow Cylinder Fitment

Snow plow replacement cylinders can look similar while using different pin sizes, retracted lengths or mounting dimensions. Use M-SP-1512-0625 as the primary reference when possible, but also compare the existing cylinder before ordering.

Confirm the stroke, pin diameter, retracted pin-to-pin length, extended length, mounting-end width, hydraulic port and cylinder diameter. Aftermarket catalogs do not always report bore dimensions consistently for this model-number family, so physical measurement is recommended when the original part number cannot be confirmed.

Need help checking fitment? Contact Union Hydraulics with the plow brand, existing cylinder part number and mounting measurements and we'll help compare the replacement.
