4" Bore Cross Tube Hydraulic Cylinders

4" Bore Cross Tube Hydraulic Cylinders

A 4-inch bore moves the BMF cross tube line into higher-force applications. This series combines substantial piston area with a wide stroke selection, making it useful when a loader, industrial mechanism or mobile attachment needs more push capability from the available hydraulic pressure.

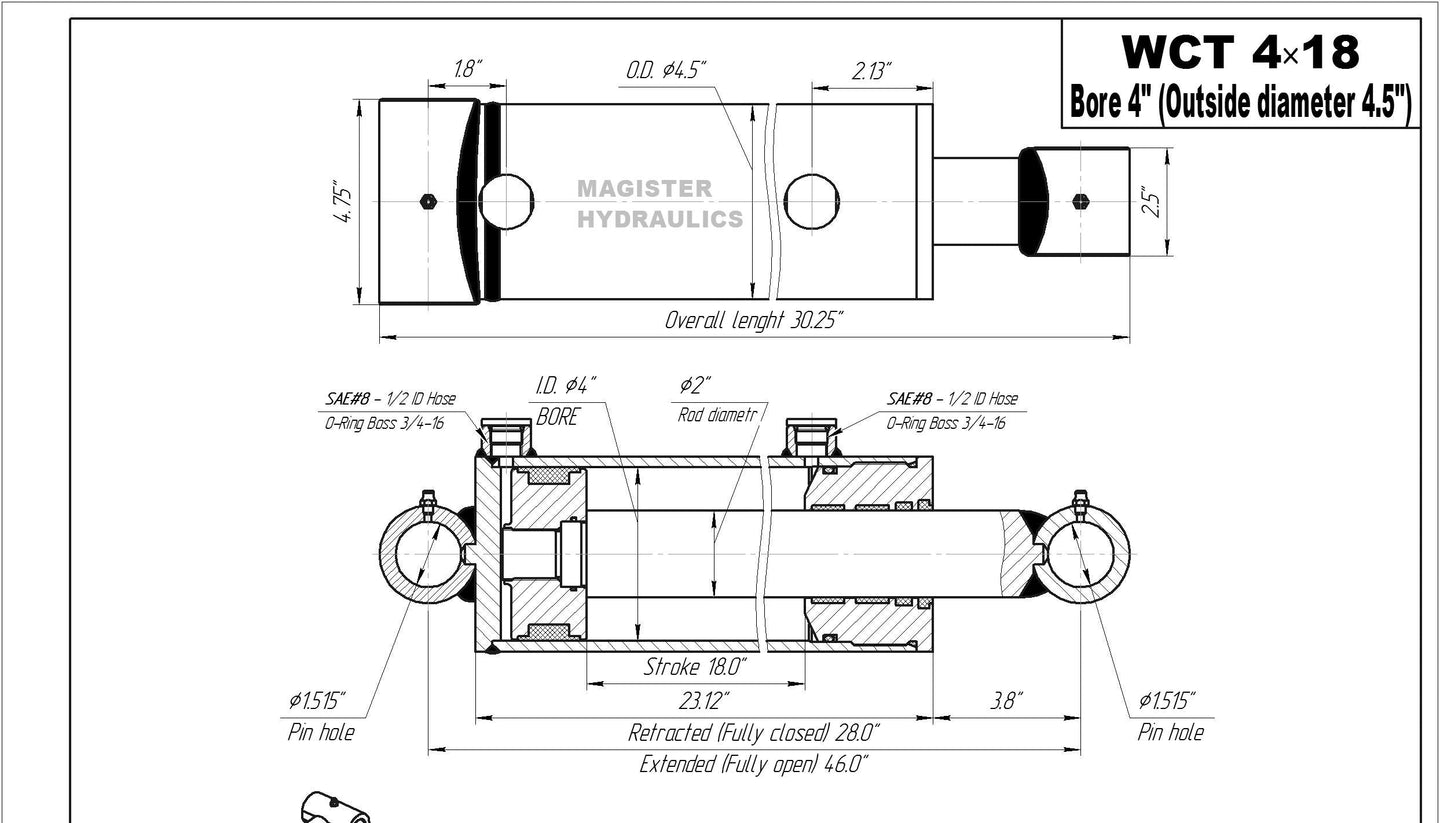

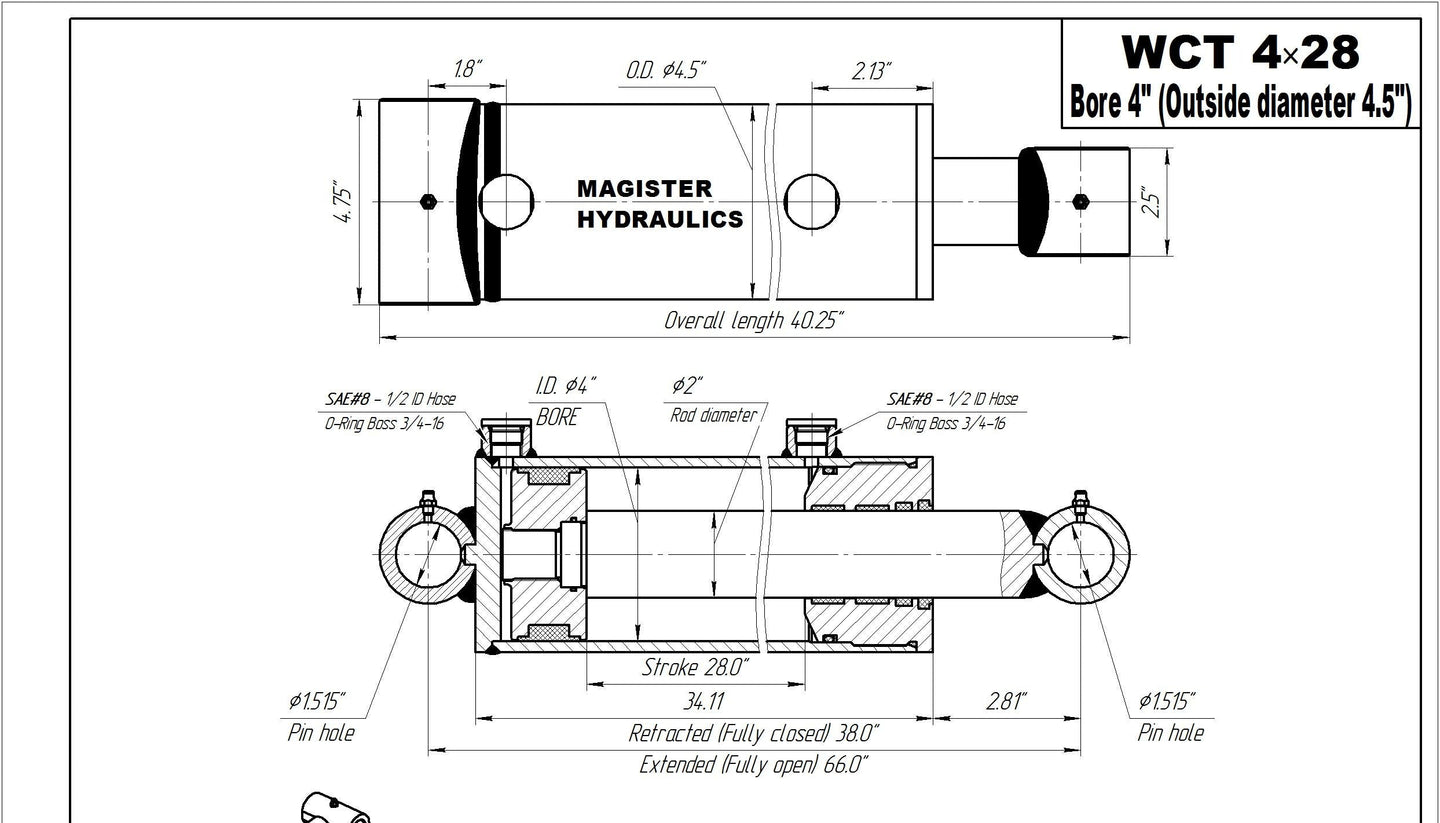

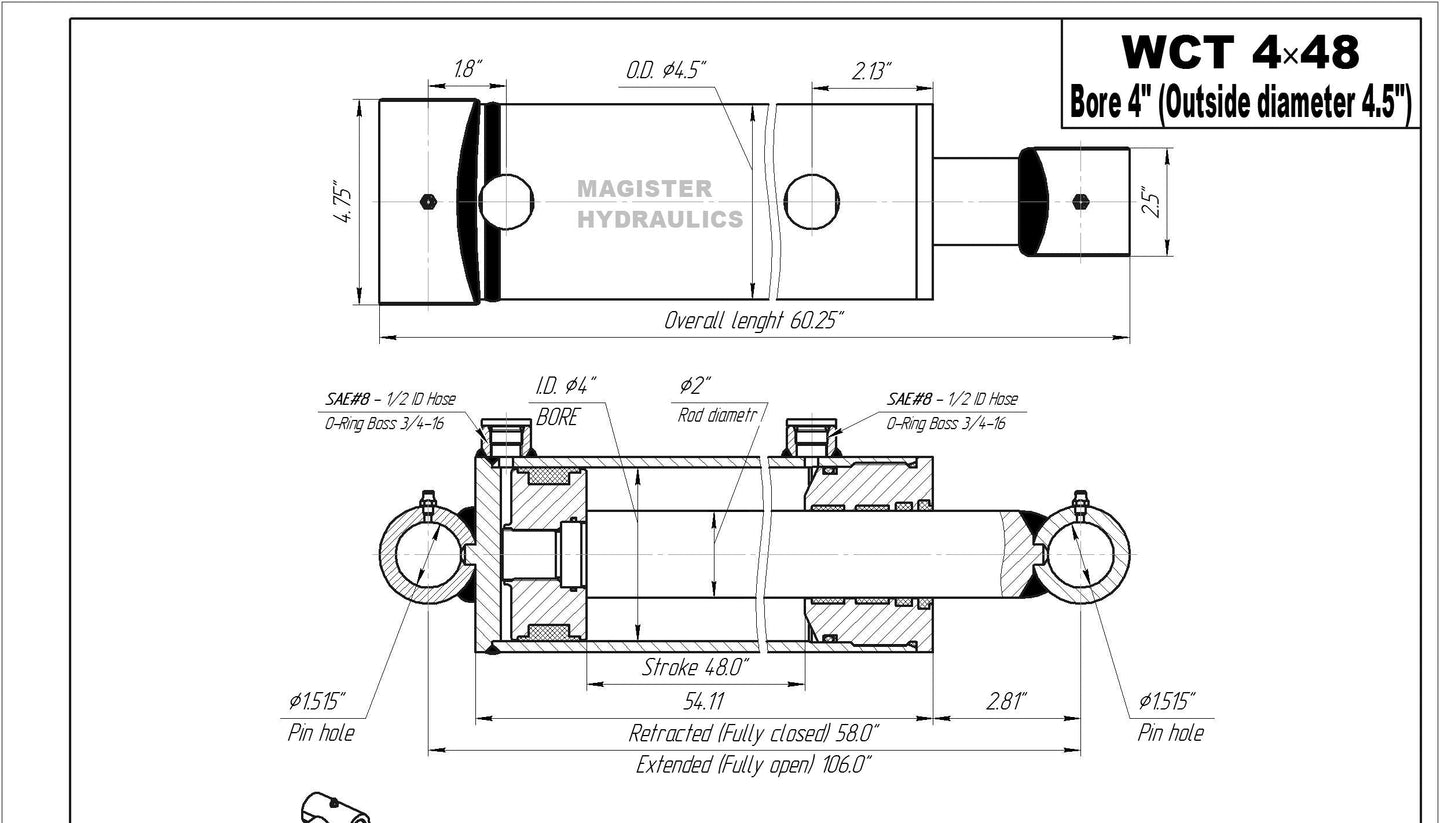

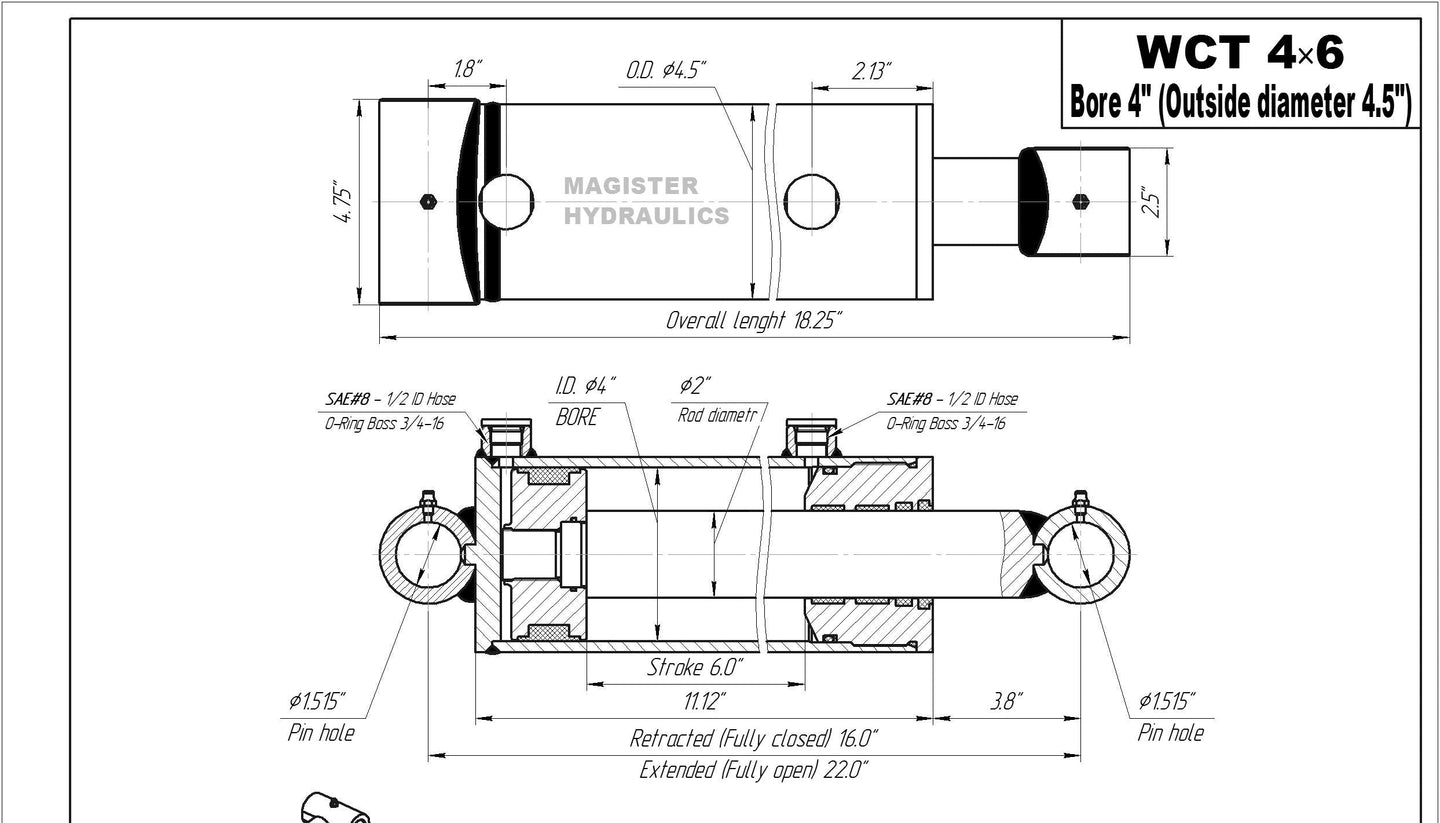

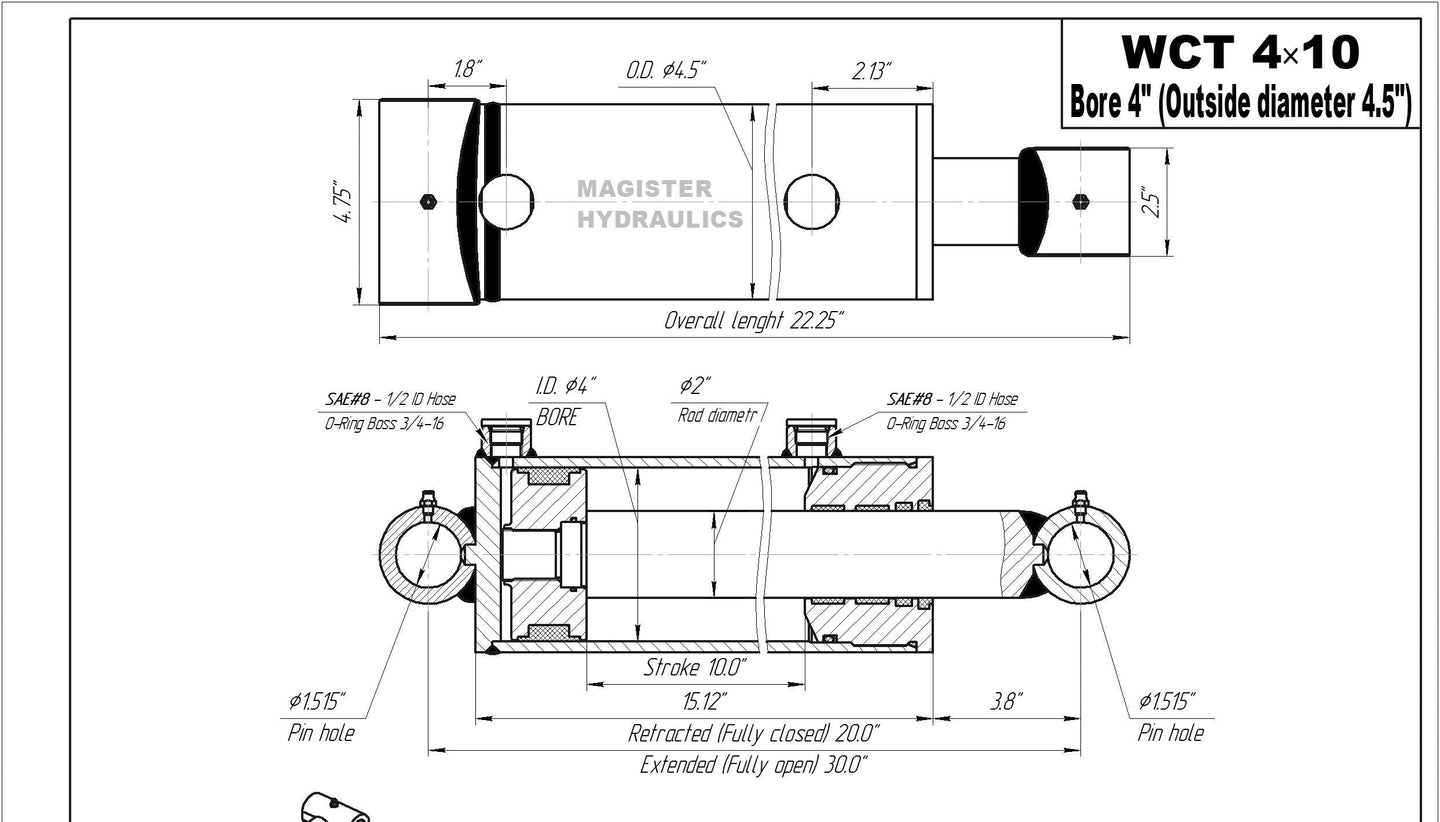

Available Stroke Lengths

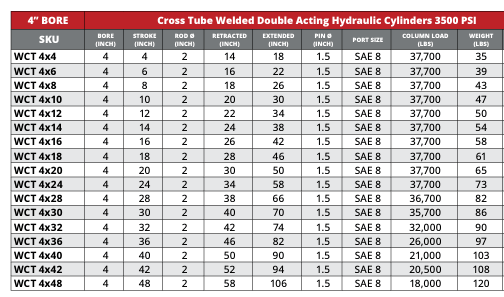

Choose from 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 28", 30", 32", 36", 40", 42" and 48" stroke variants. Select the stroke from the product options to view the corresponding SKU and price.

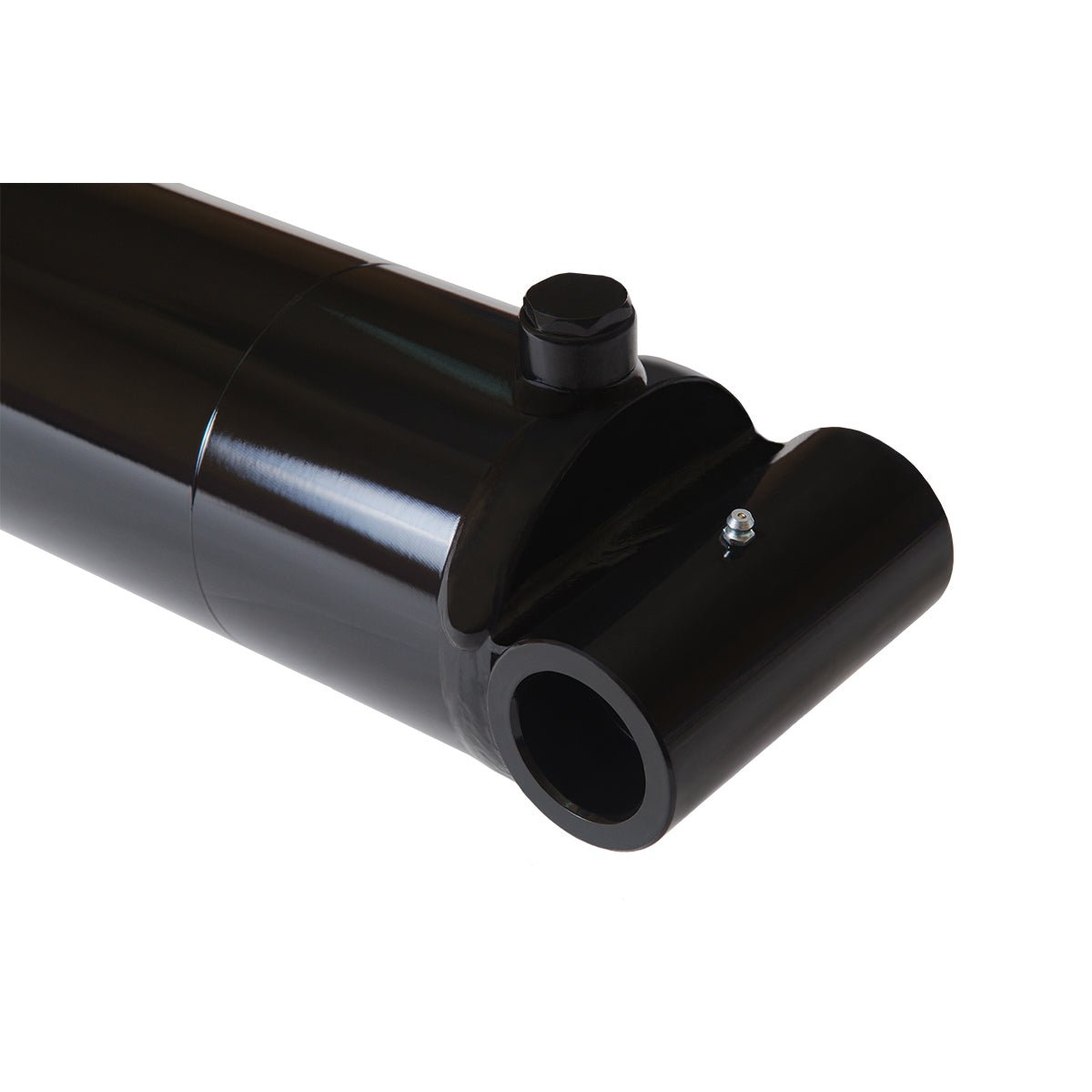

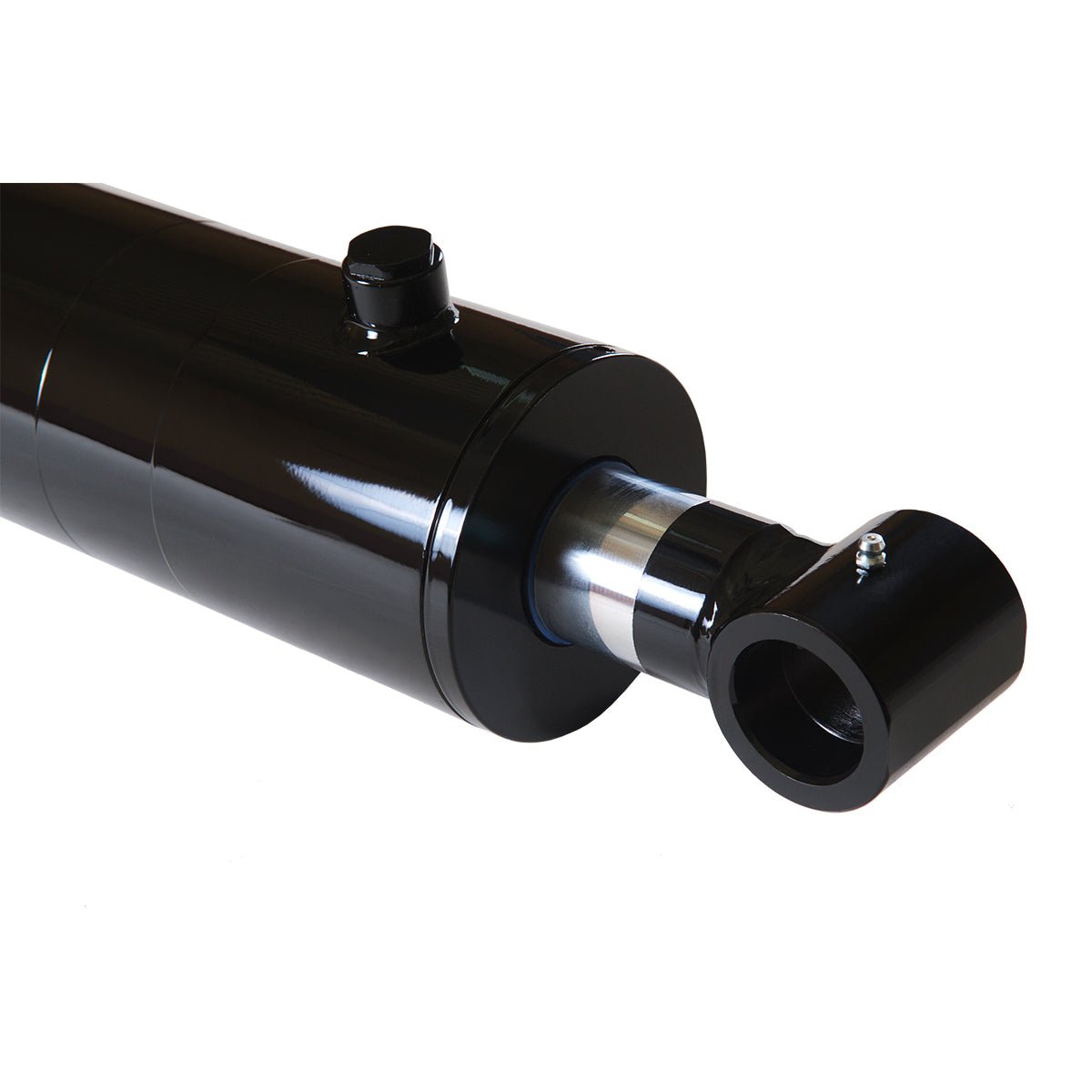

Cross Tube Cylinder Construction

• Action: Double acting
• Mounting: Welded cross-tube end mounts
• Operating Pressure: Up to 3,500 PSI
• Tube: High-tensile honed cold-drawn steel
• Rod: Ground and polished hard-chrome-plated steel
• Sealing: Five-component compact sealing system with polyurethane rod seal and wiper

The double-acting design provides powered movement in both directions, while the welded cross-tube ends create a durable pin connection for mechanisms that pivot through their cycle. Applications can include construction equipment, agricultural machinery, material handling and custom fabricated systems.

Choosing the Correct Cylinder

Do not substitute a 4-inch bore cylinder solely because the stroke matches. Check the machine pressure, rod-side load requirements, mounting dimensions, pin size, hydraulic ports and closed/extended lengths to make sure the replacement matches the application.

Need help confirming the correct size? Contact Union Hydraulics with the bore, stroke, pin dimensions, port size and mounting measurements from the cylinder being replaced.
