3.5" Bore Cross Tube Hydraulic Cylinders

3.5" Bore Cross Tube Hydraulic Cylinders

The 3.5-inch bore cross tube series is aimed at applications where higher extension force is needed without stepping into the largest cylinder sizes. BMF Hydraulics offers this bore with stroke choices from 4 through 36 inches for mobile-equipment and industrial linkage applications.

Available Stroke Lengths

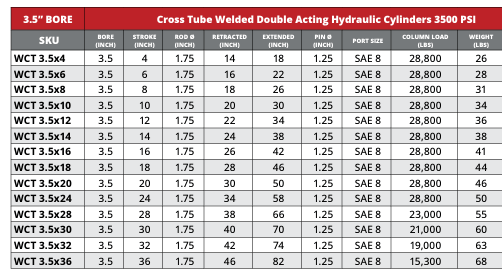

Choose from 4", 6", 8", 10", 12", 14", 16", 18", 20", 24", 28", 30", 32" and 36" stroke variants. Select the stroke from the product options to view the corresponding SKU and price.

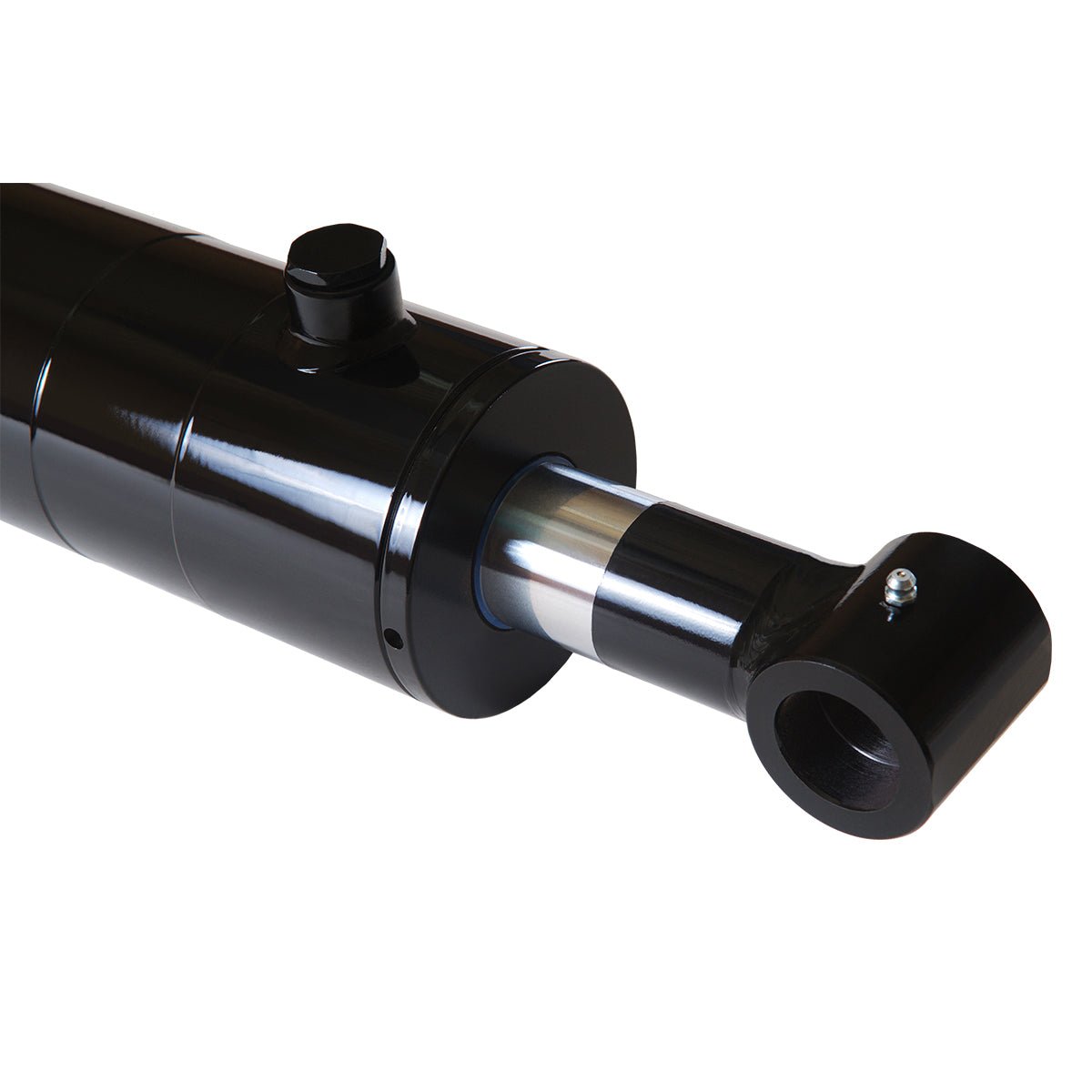

Cross Tube Cylinder Construction

• Action: Double acting

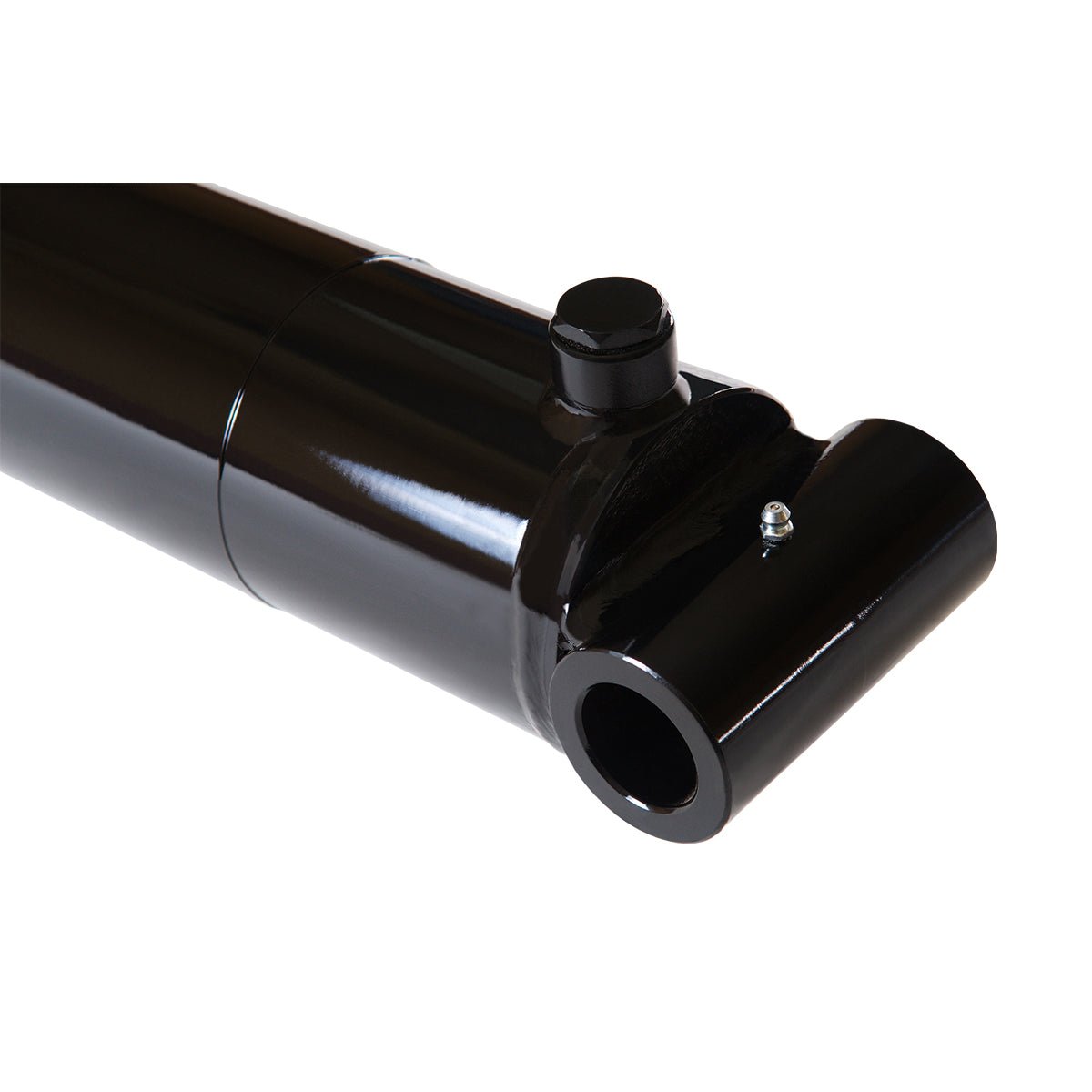

• Mounting: Welded cross-tube end mounts
• Operating Pressure: Up to 3,500 PSI
• Tube: High-tensile honed cold-drawn steel
• Rod: Ground and polished hard-chrome-plated steel
• Sealing: Five-component compact sealing system with polyurethane rod seal and wiper

Typical uses include loader mechanisms, agricultural attachments, earthmoving equipment, forestry machinery and fabricated systems where the cylinder must swing on cross-tube pins as it extends and retracts. The welded body and end mounts are designed around that style of service.

Choosing the Correct Cylinder

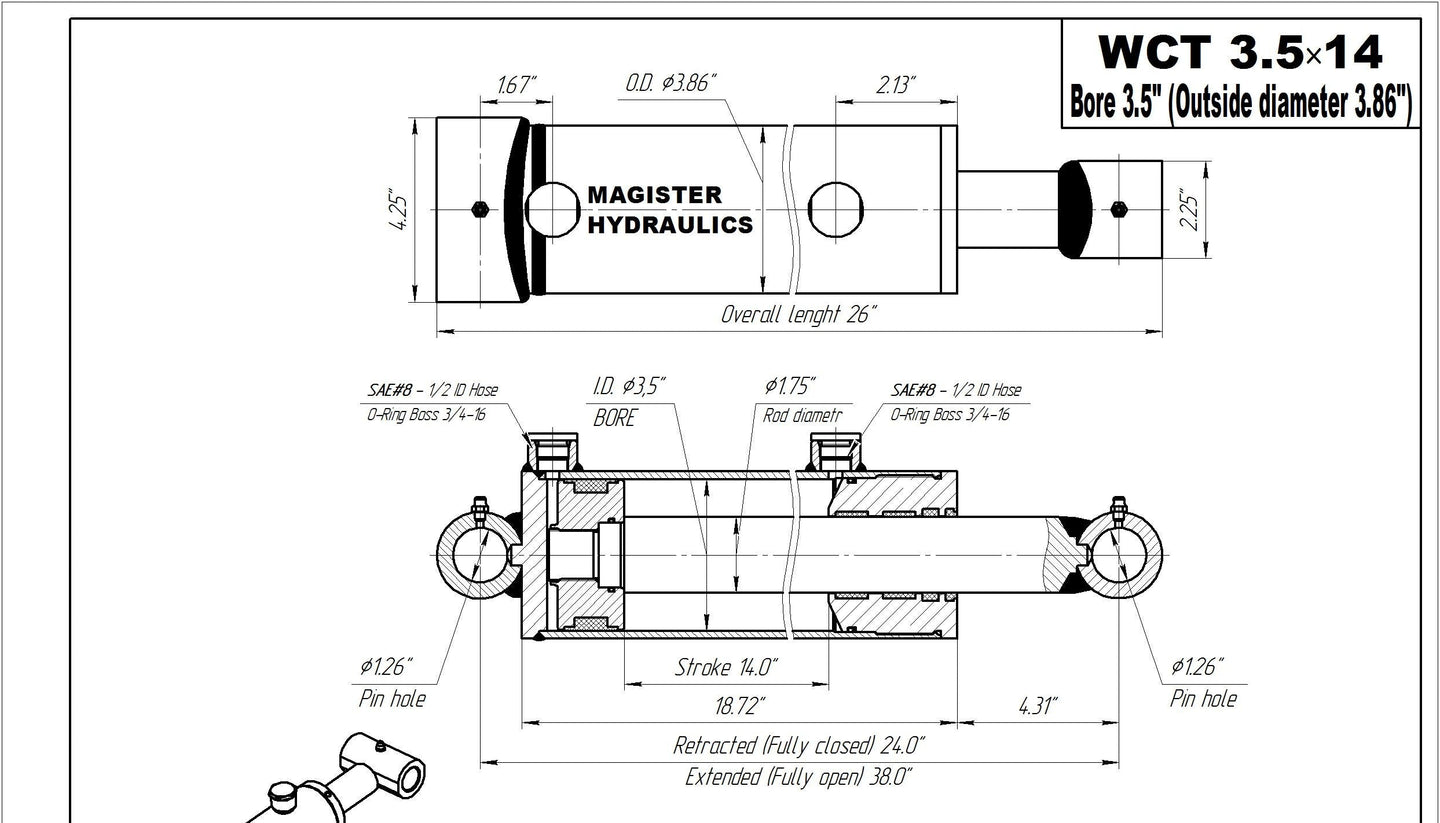

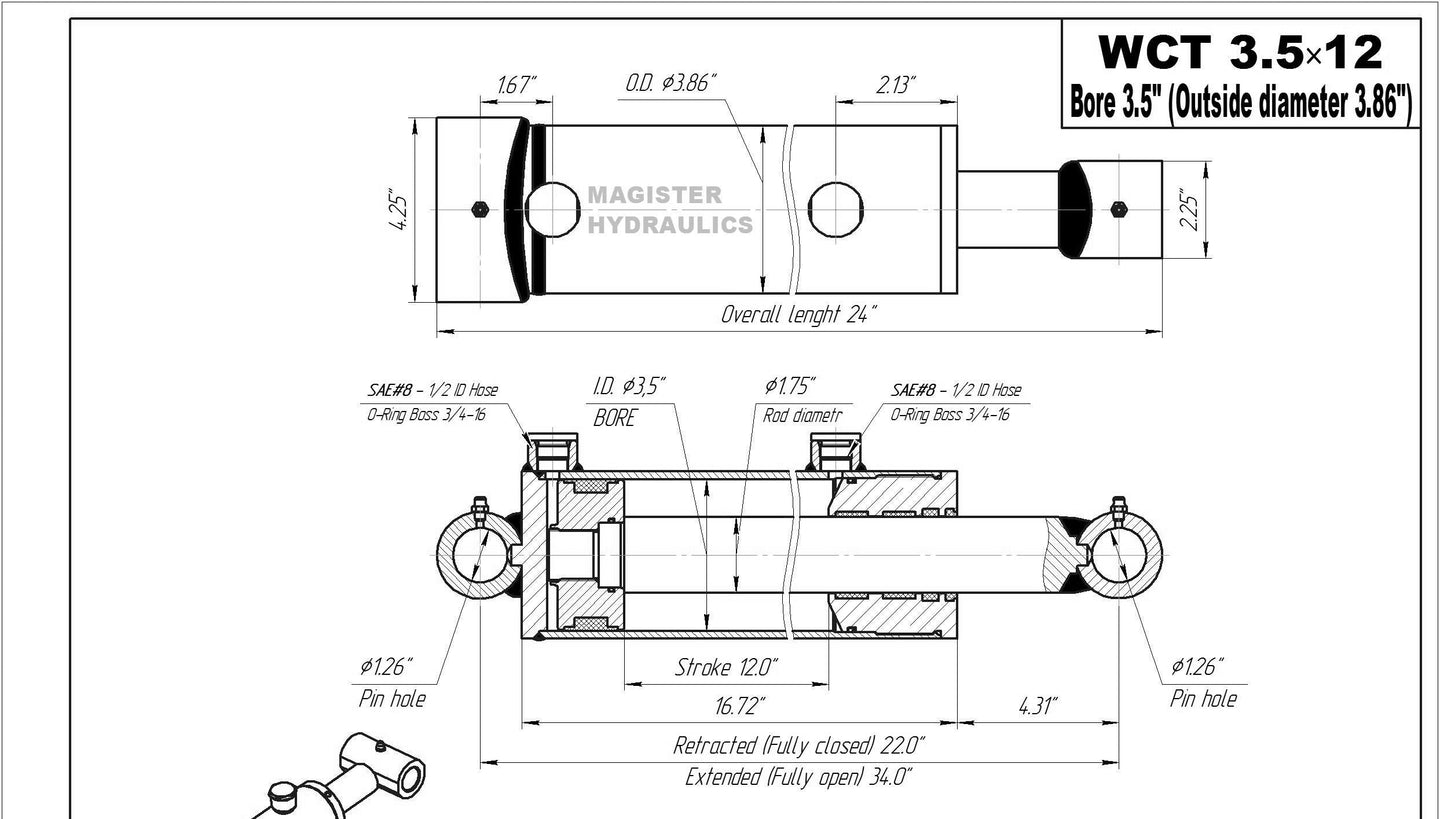

When replacing an existing 3.5-inch bore cylinder, confirm more than the bore and stroke. Pin location, mounting width, rod diameter, port orientation and the center-to-center dimensions can determine whether the cylinder will install without modifying the machine.

Need help confirming the correct size? Contact Union Hydraulics with the bore, stroke, pin dimensions, port size and mounting measurements from the cylinder being replaced.
