3" Bore Cross Tube Hydraulic Cylinders

3" Bore Cross Tube Hydraulic Cylinders

For applications that need more cylinder force while retaining a straightforward pin-mounted design, the 3-inch bore BMF cross tube series is a strong middle-range option. Multiple stroke lengths allow the same bore size to be matched to a wide variety of machine geometries.

Available Stroke Lengths

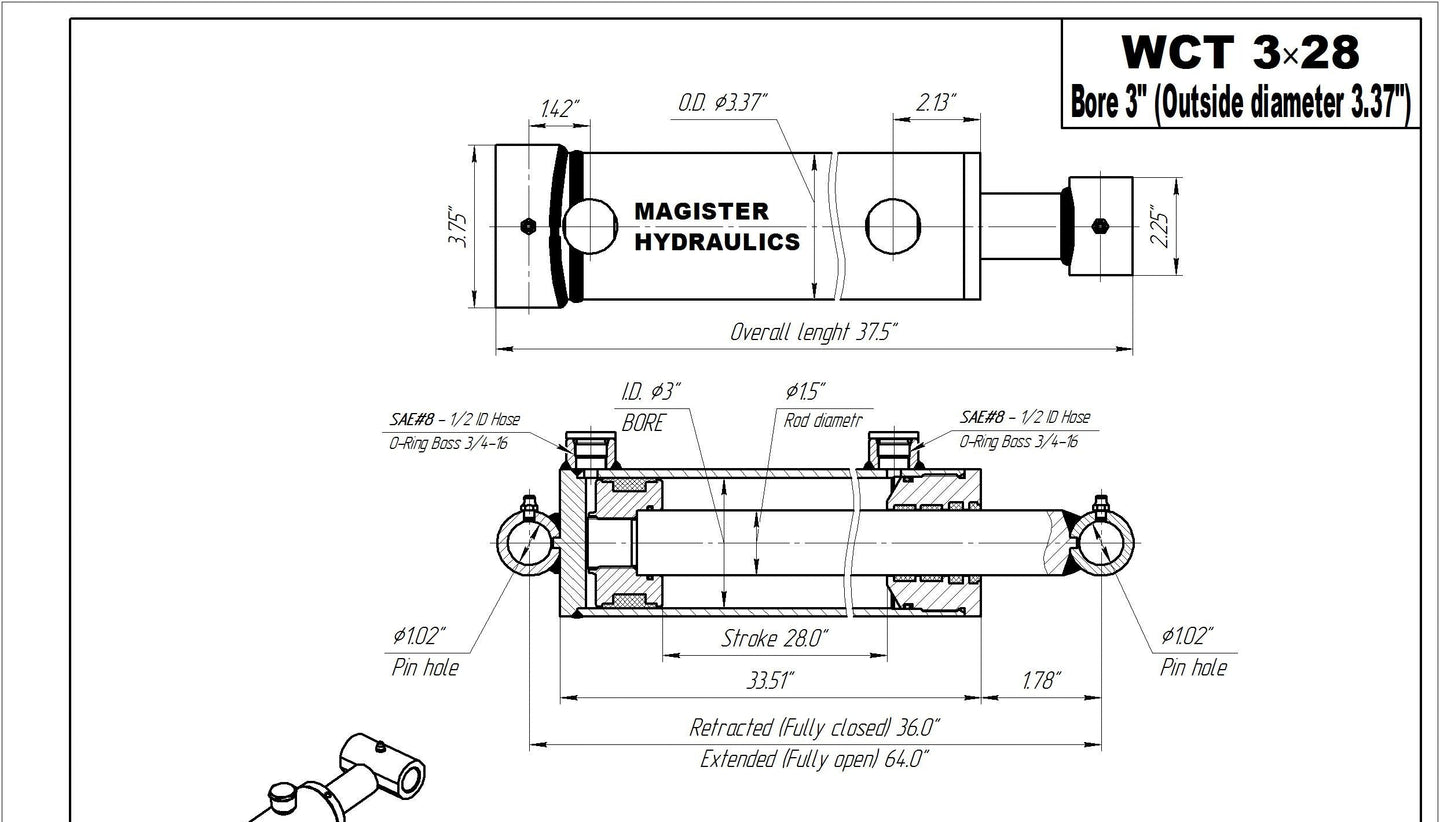

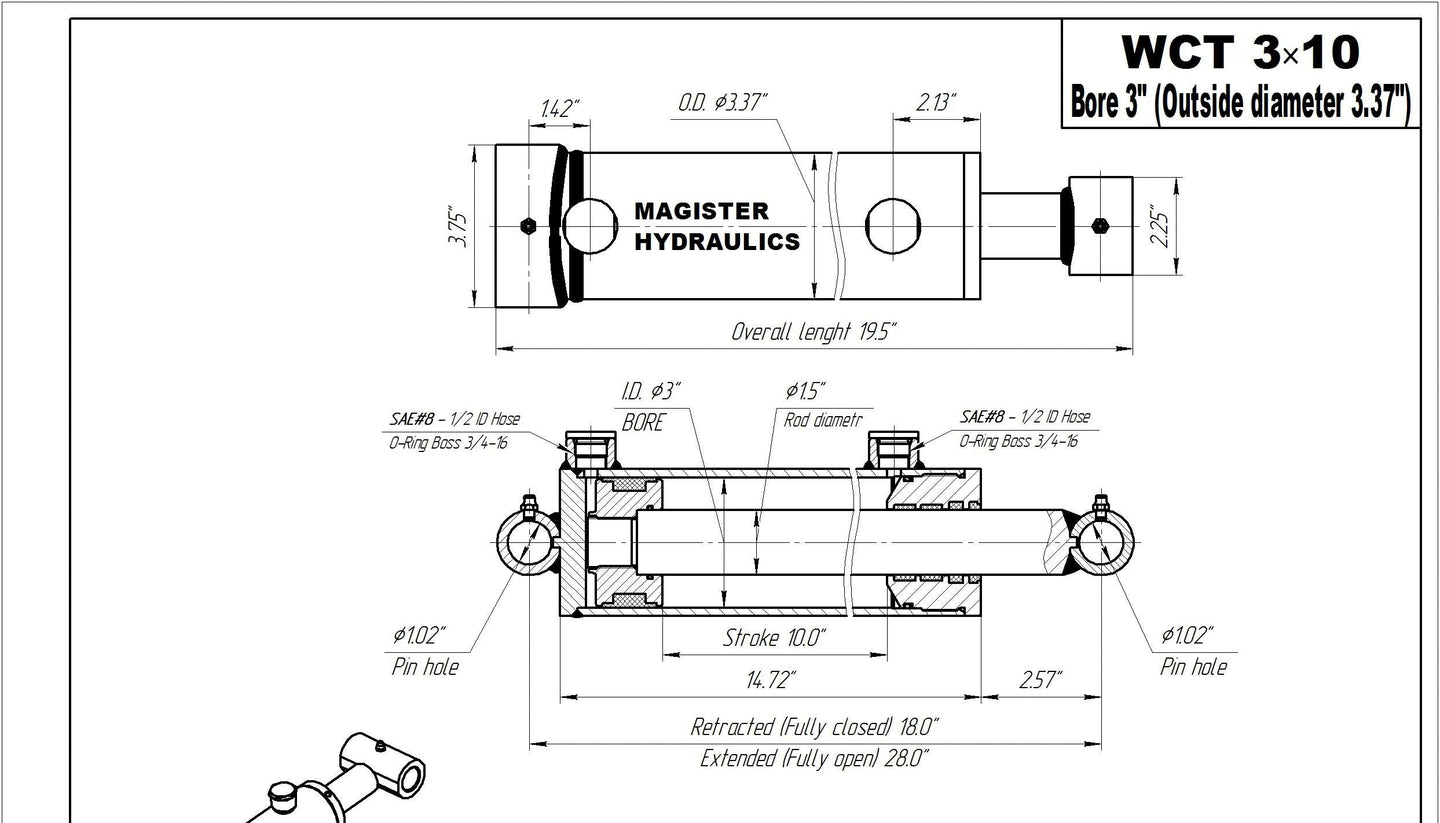

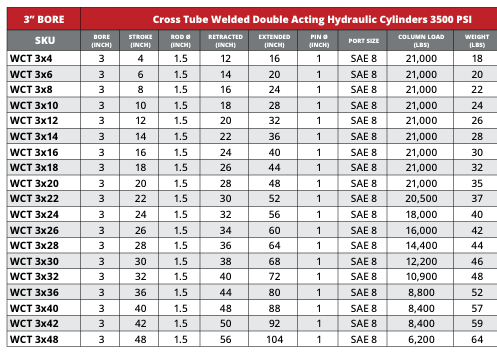

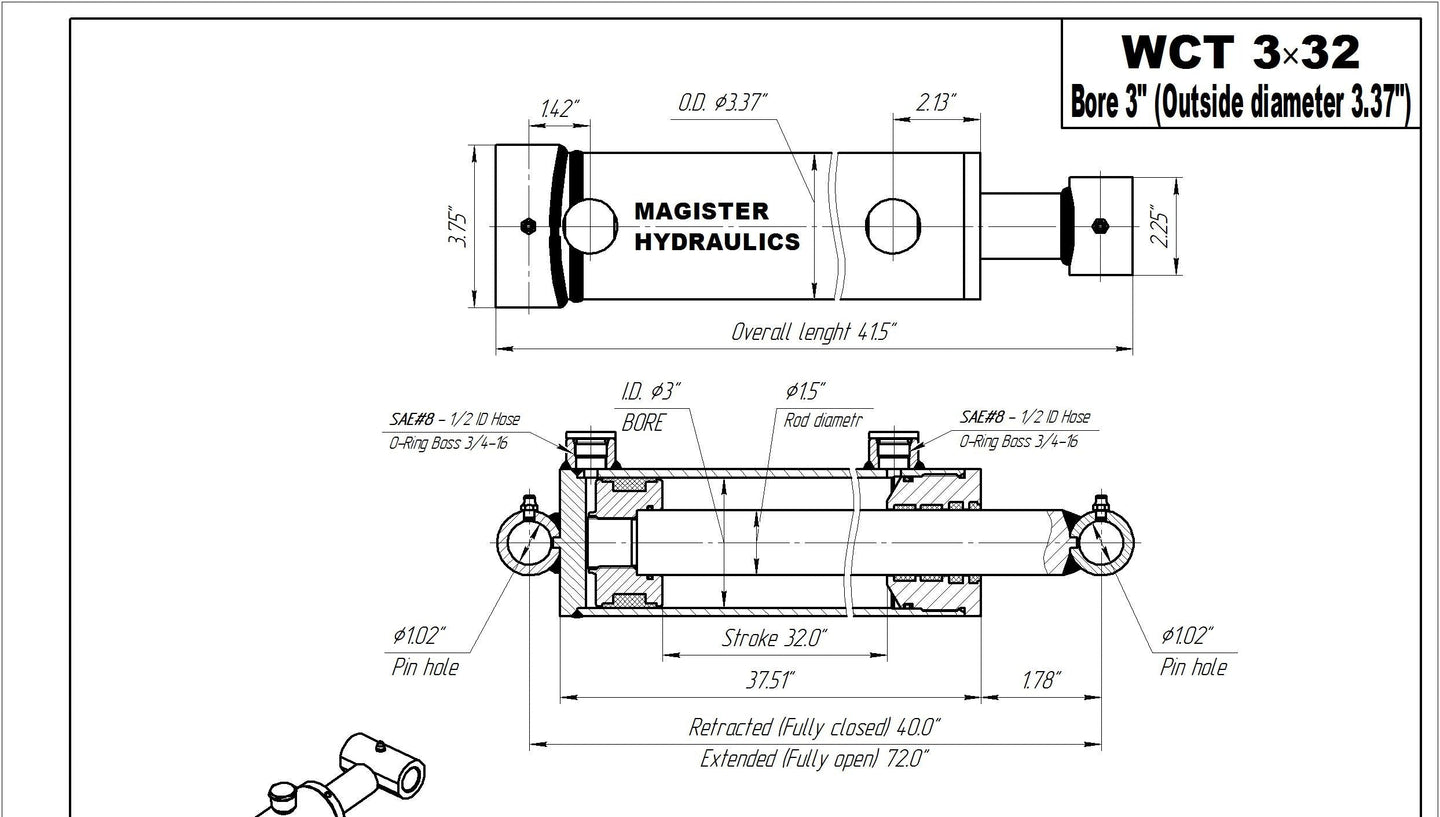

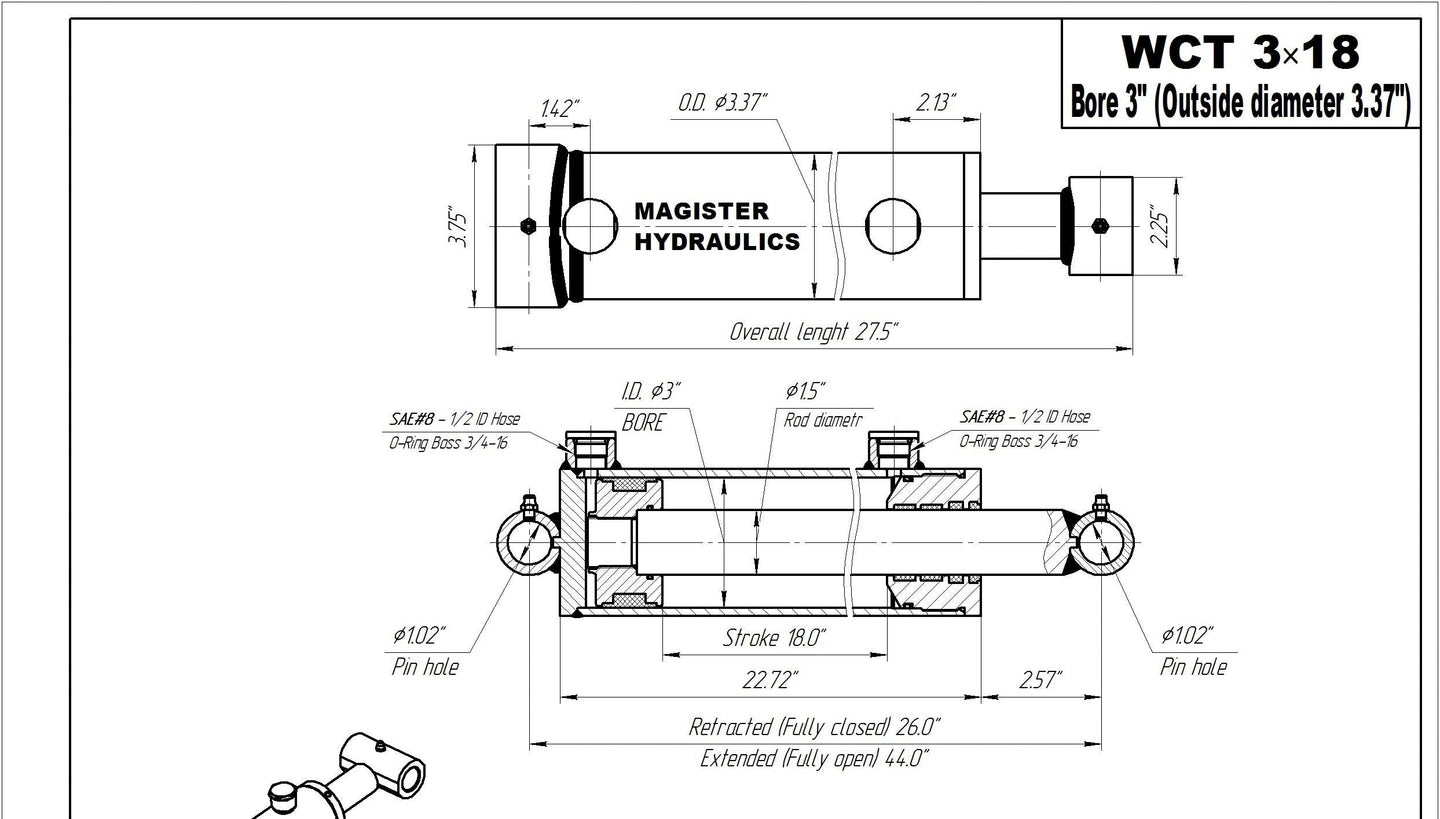

Choose from 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", 26", 28", 30", 32", 36", 40", 42" and 48" stroke variants. Select the stroke from the product options to view the corresponding SKU and price.

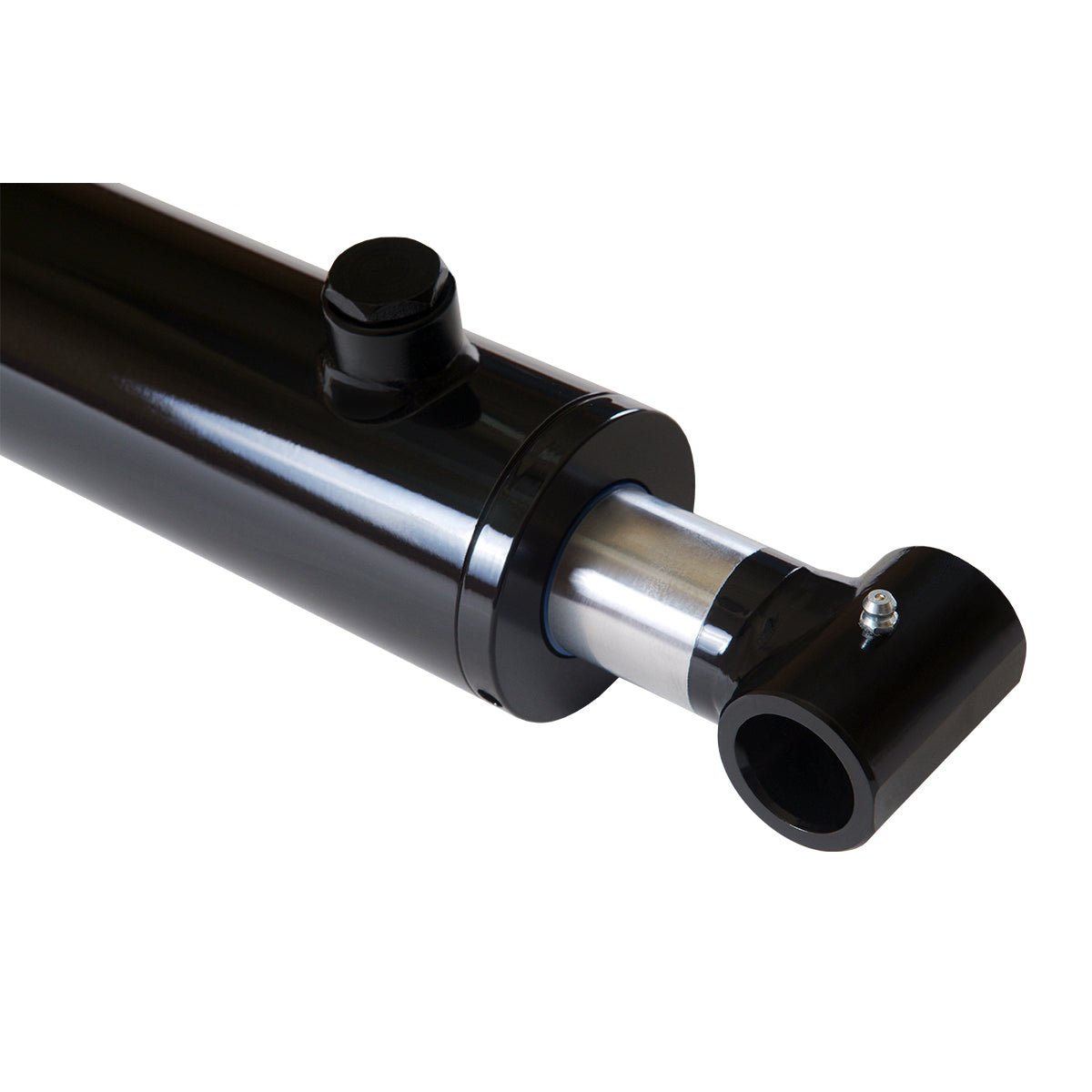

Cross Tube Cylinder Construction

• Action: Double acting

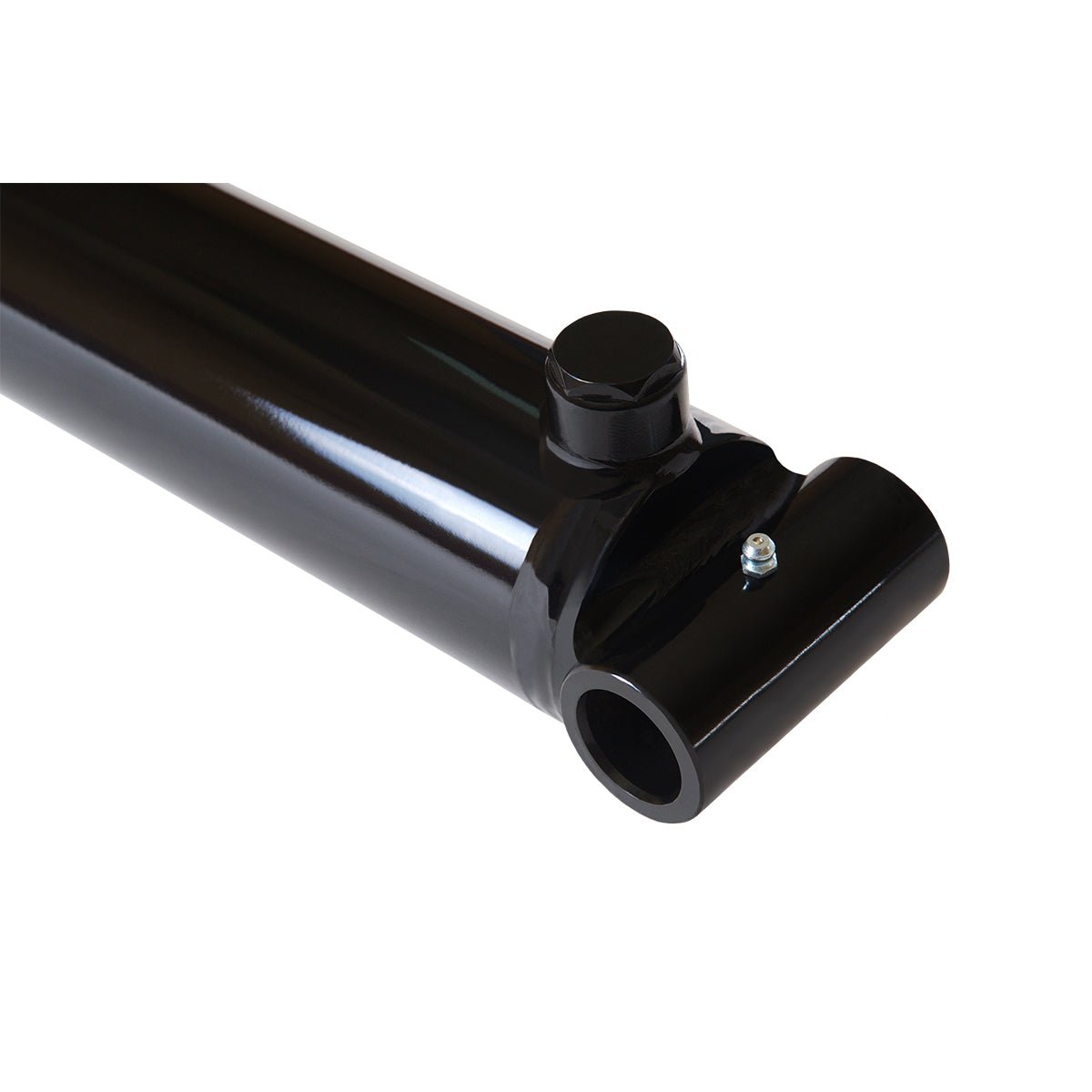

• Mounting: Welded cross-tube end mounts
• Operating Pressure: Up to 3,500 PSI
• Tube: High-tensile honed cold-drawn steel
• Rod: Ground and polished hard-chrome-plated steel
• Sealing: Five-component compact sealing system with polyurethane rod seal and wiper

Three-inch bore cylinders are commonly used on heavier attachments, loaders, agricultural machines, earthmoving equipment and purpose-built hydraulic systems. The cross-tube mounting arrangement allows the cylinder to pivot with the linkage instead of requiring a rigid flange or foot mount.

Choosing the Correct Cylinder

A larger bore increases extension force at a given hydraulic pressure, but the correct replacement still depends on the complete geometry. Verify stroke, rod size, mounting-pin diameter, port size and retracted/extended center distances before placing the cylinder into service.

Need help confirming the correct size? Contact Union Hydraulics with the bore, stroke, pin dimensions, port size and mounting measurements from the cylinder being replaced.
