MUST CHOOSE GEAR SIZE BELOW

Buyers Part Number: H2136101

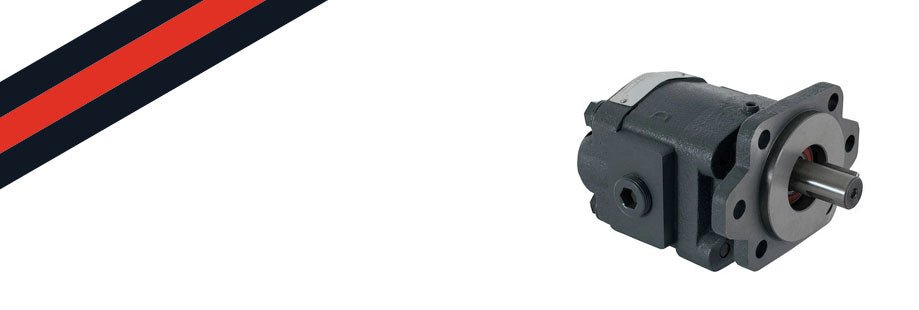

Buyers Products H21 Series Hydraulic Gear Pump with Spine Shaft is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted.

Built tough of cast iron with teflon-coated bronze thrustplates.

Structural integrity supported by four internal dowels and a shaft bearing.

High-pressure rated -- can take a maximum 2500 or 3000 PSI.

Specifications

Direct Mount/Remote Mount	2/4 Bolt SAE B	Direct or Remote Mount	Direct Mount
Displacement	2 in.³/r	Flow	6 GPM
Flow at 1000 RPM	6.8 GPM	Flow at 1200 RPM	8.16 GPM
Flow at 1500 RPM	10.2 GPM	Flow at 1800 RPM	12.24 GPM
Flow at 2100 RPM	14.28 GPM	Flow at 600 RPM	4.08 GPM
Flow at 900 RPM	6.12 GPM	Gear Size	1.00"
Gear Width	1.000"	Input Mount Type	Integral Bracket
Material	Cast Iron	Maximum Pressure	3000 PSI
Maximum Rotations Per Minute (RPM)	2000 RPM	Mount Type	SAE B 2/4 Bolt
Outlet Port Size	1 NPT	Pilot Diameter	4.00"
Ports (rear/side)	Rear/Side	Rear Port Size	1 NPT

Specifications continued:

Rotation	Bi-Directional	Shaft Size	7/8-13
Shaft Type	Splined	Suction Port Size	1 NPT
Shipping Weight	29.92 lb

Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-1/4 Inch Diameter Gear

Buyers Part Number: H2136121

Buyers Products H21 Series Hydraulic Gear Pump with Spine Shaft is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted.

Built tough of cast iron with teflon-coated bronze thrustplates.

Structural integrity supported by four internal dowels and a shaft bearing.

High-pressure rated -- can take a maximum 2500 or 3000 PSI.

Specifications

Direct Mount/Remote Mount	2/4 Bolt SAE B	Direct or Remote Mount	Direct Mount
Displacement	2 in.³/r	Flow	8 GPM
Flow at 1000 RPM	8.7 GPM	Flow at 1200 RPM	10.44 GPM
Flow at 1500 RPM	13.05 GPM	Flow at 1800 RPM	15.66 GPM
Flow at 2100 RPM	18.27 GPM	Flow at 600 RPM	5.22 GPM
Flow at 900 RPM	7.83 GPM	Gear Size	1.25"
Gear Width	1.250"	Inlet Port Size	1 NPT
Input Mount Type	Integral Bracket	Material	Cast Iron
Maximum Pressure	3000 PSI	Maximum Rotations Per Minute (RPM)	2000 RPM
Mount Type	SAE B 2/4 Bolt	Outlet Port Size	1 NPT

Specifications continued:

Pilot Diameter	4.00"	Ports (rear/side)	Rear/Side
Rear Port Size	1 NPT	Rotation	Bi-Directional
Shaft Size	7/8-13	Shaft Type	Splined
Suction Port Size	1 NPT	Shipping Weight	30.3 lb

Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-1/2 Inch Diameter Gear

Buyers Part Number: H2136151

Buyers Products H21 Series Hydraulic Gear Pump with Spine Shaft is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted.

Built tough of cast iron with teflon-coated bronze thrustplates.

Structural integrity supported by four internal dowels and a shaft bearing.

High-pressure rated -- can take a maximum 2500 or 3000 PSI.

Specifications

Direct Mount/Remote Mount	2/4 Bolt SAE B	Direct or Remote Mount	Direct Mount
Displacement	3 in.³/r	Flow	11 GPM
Flow at 1000 RPM	11.3 GPM	Flow at 1200 RPM	13.56 GPM
Flow at 1500 RPM	16.95 GPM	Flow at 1800 RPM	20.34 GPM
Flow at 2100 RPM	23.73 GPM	Flow at 600 RPM	6.78 GPM
Flow at 900 RPM	10.17 GPM	Gear Size	1.5"
Gear Width	1.500"	Inlet Port Size	1 NPT
Input Mount Type	Integral Bracket	Material	Cast Iron
Maximum Pressure	3000 PSI	Maximum Rotations Per Minute (RPM)	2000 RPM
Mount Type	SAE B 2/4 Bolt	Outlet Port Size	1 NPT

Specifications continued:

Pilot Diameter	4.00"	Ports (rear/side)	Rear/Side
Rear Port Size	1 NPT	Rotation	Bi-Directional
Shaft Size	7/8-13	Shaft Type	Splined
Suction Port Size	1 NPT	Shipping Weight	31.8 lb

Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-3/4 Inch Diameter Gear

Buyers Part Number: H2136171

Buyers Products H21 Series Hydraulic Gear Pump with Spine Shaft is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted.

Built tough of cast iron with teflon-coated bronze thrustplates.

Structural integrity supported by four internal dowels and a shaft bearing.

High-pressure rated -- can take a maximum 2500 or 3000 PSI.

Specifications

Direct Mount/Remote Mount	2/4 Bolt SAE B	Direct or Remote Mount	Direct Mount
Displacement	3 in.³/r	Flow	13 GPM
Flow at 1000 RPM	13 GPM	Flow at 1200 RPM	15.6 GPM
Flow at 1500 RPM	19.5 GPM	Flow at 1800 RPM	23.4 GPM
Flow at 2100 RPM	27.3 GPM	Flow at 600 RPM	7.8 GPM
Flow at 900 RPM	11.7 GPM	Gear Size	1.75"
Gear Width	1.750"	Inlet Port Size	1 1/4 NPT
Input Mount Type	Integral Bracket	Material	Cast Iron
Maximum Pressure	2500 PSI	Maximum Rotations Per Minute (RPM)	2000 RPM
Mount Type	SAE B 2/4 Bolt	Outlet Port Size	1 1/4 NPT

Specifications continued:

Pilot Diameter	4.00"	Ports (rear/side)	Rear/Side
Rear Port Size	1 NPT	Rotation	Bi-Directional
Shaft Size	7/8-13	Shaft Type	Splined
Suction Port Size	1 1/4 NPT	Shipping Weight	37 lb

Hydraulic Gear Pump With 7/8-13 Spline Shaft And 2 Inch Diameter Gear

Buyers Part Number: H2136201

Buyers Products H21 Series Hydraulic Gear Pump with Spine Shaft is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted.

Built tough of cast iron with teflon-coated bronze thrustplates.

Structural integrity supported by four internal dowels and a shaft bearing.

High-pressure rated -- can take a maximum 2500 or 3000 PSI.

Specifications

Direct Mount/Remote Mount	2/4 Bolt SAE B	Direct or Remote Mount	Direct Mount
Displacement	4 in.³/r	Flow	15 GPM
Flow at 1000 RPM	15 GPM	Flow at 1200 RPM	18.36 GPM
Flow at 1500 RPM	22.5 GPM	Flow at 1800 RPM	27. GPM
Flow at 2100 RPM	31.5 GPM	Flow at 600 RPM	9.0 GPM
Flow at 900 RPM	13.5 GPM	Gear Size	2.00"
Gear Width	2.000"	Inlet Port Size	1 1/4 NPT
Input Mount Type	Integral Bracket	Material	Cast Iron
Maximum Pressure	2500 PSI	Maximum Rotations Per Minute (RPM)	2000 RPM
Mount Type	SAE B 2/4 Bolt	Outlet Port Size	1 1/4 NPT

Specifications continued:

Pilot Diameter	4.00"	Ports (rear/side)	Rear/Side
Rear Port Size	1 NPT	Rotation	Bi-Directional
Shaft Size	7/8-13	Shaft Type	Splined
Suction Port Size	1 1/4 NPT	Shipping Weight	36.38 lb
